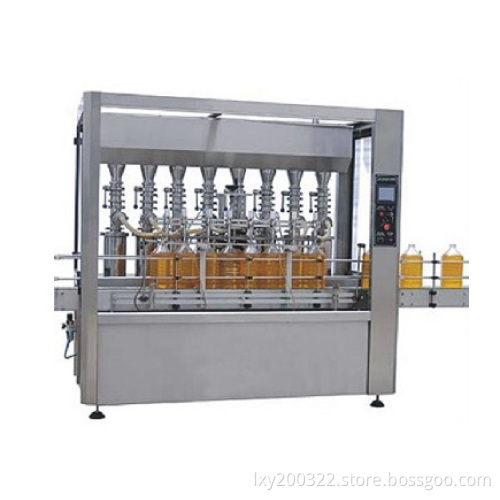

Auto Oil Filling Machine (AQT-051)

Description: This series of automatic filling machine, widely used for food field, oil and viscous liquids, like washing liquid, not only can be used seperately and also can be linked to production lines. This filler series is the most reliable and advanced in present home field.
Features:
1. Adopting plunger-style metering pump and phenumatic-control stainless steel valves to fill, suitable for filling various viscous liquids.
2. Phenumatic-control injection pump is convenient to adjust filling dosage accurately, with high filling precision.
3. With high-position liquid storage, liquid level switch automatically controls material feeding.
4. Filling heads with anti-drip device and with function of back-sucking, ensuring no phenomena of the wiredrawing and driping and leakage.
5. The whole machine is easy to clean and disinfect, convenient to change different specifications.
6. PLC control system, frequency conversion, no filling without bottles, with high degree of automation.
7. Electric & phenumatic parts are all world-famous brands, like Japan SMC.
8. In full accordance with GMP requirements.
Technical parameters:
Filling scope: 500-4000ml(750ml, 1L, 1.8L, 3.8L)
Filling nozzles: 16
Capacity: 3000-3500BPH (based on 750ml)
Filling error: ≤ 1%
Compressed air pressure: ≤ 0.4-0.69Mpa
Air consumption: 15m³ /h
Voltage: 380V 50Hz
Power: ≤ 1.4kw
Single noise: ≤ 50dB
N. W.: ≤ 1000KG
