Product Description

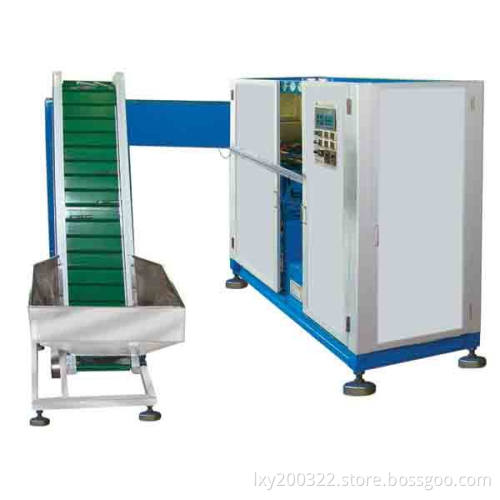

Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1. Reasonable design, full automatic control. Save power and labor. Adopt high quality components.
2. Feeding system carries the performs by bobot automatically.
3. Infrared oven heater adopts the quartz lamp to heat the PET tube.
4. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits.
We have perfect service after sales.
Max capacity: 2000ml
Max output: 3500-4000
Body diamerter: 20mm-100mm
Body height: 50mm-350mm
Neck diamete: 15mm-32mm
Mould thick: 240mm
Mould: 320*480mm
Electrical source power: 380v 3Phase 220v 3Phase 50-60Hz
Powe: 25KW
Really use power: 6KW
Operation air: 2000NL(8.0bar)/min
Blow air: 2500NL(3.0bar)/min
Cooling water: 100L/min
LxWxH: 1908*1280*1920mm
Weight: 2000kg
Auxiliary equipment: Perform unscrambler is equipped as standard
Resin available: PET
