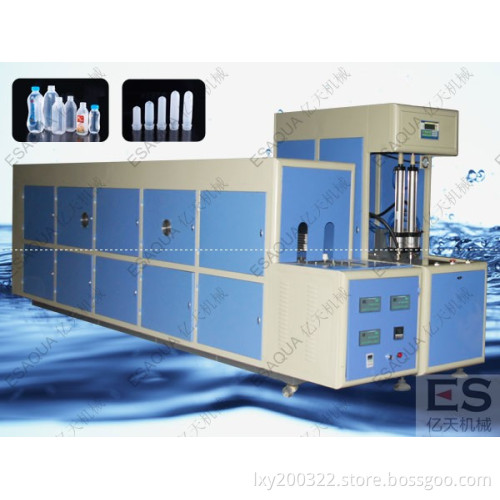

5 gallon PET bottle blowing molding machine
Capacity: 90 PCS per hour
Type: Semi-automatic pneumatic motivated.
Main feature:
1. Rotary type far infra-red heating van
2. Screw type high pressure air compressor and low pressure air compressor
3. One to one high sealed 5-gallon bottle mold
4. High efficiency bottle blowing machine.
5. Mitsubishi Japan PLC control system
6. Manual handling heated performs into the blowing mold part.
Specifications:
Model: ES-90
Heating power: 16Kw (other electrical power standard available on request)
Maximum bottle size: 25 Liters
Pneumatic pressure for blowing part: Below 0.3Mpa
Mold clamping force: 330KN
Toggle stroke: 360mm
Maximum mold thickness: 400mm
Net weight: 1300KG
Blowing part: 2600 x 740 x 2050mm
Heating oven: 2300 x 700 x 1300mm
