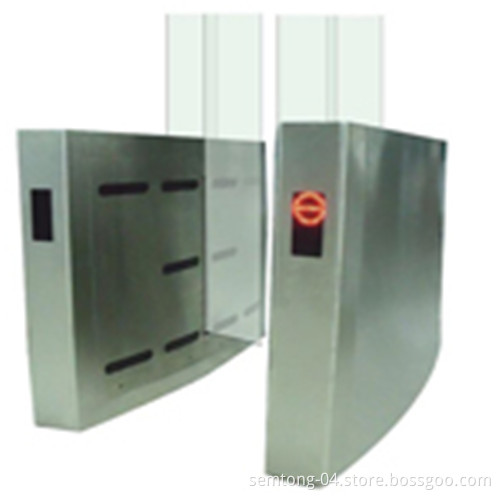

Two-Way RS485/Can Sliding Turnstile

1. Description of product:
ST-9066A is an intelligent passageway management equipment that we have spent many years in its research, development and manufacture. A high-tech product which is aimed at intelligent management on personnel passageway. Mechanism, electronic, micro- processor control and various identification technologies are organically integrated into this equipment. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, direction indication and extending nice LED counting display interface. Intelligent swing barrier is convenient to work with card-reading devices, such as IC card, ID card, bar code, fingerprint and provides civilized, ordered passageway to people, affectively manages personnel's in and out as well. It is widely applied to bus stations, ports, metros, factories, buildings, mansions, intelligent neighborhoods, hotels, clubs and companies who want to carry out intelligent management on passageway. Classified into two kinds: Single traverse/core (for single passageway and multiple passageways) and double traverse (for multiple passageways)
2. Function and feature of standard product
1) Breakdown self-check and alarm function. Convenient for customers' maintenance and use.
2) Running state of equipment can be programmed through the little buttons inside the main controlling board.
3) Anti-pinch and anti-collision function, when there is block during its returning, electronic engine stops working automatically in the prescribed
Time. When time delay is acquired, it will has its second returning later (till it comes back to where it should be) and the force is very weak (less or
Equal to 2kg).
4) Anti-pushing function. Without having received the signal of opening, gates lock automatically.
5). Gate synchronization can be adjusted (only for double-gates)
6. )Anti reset/return function. When gate is open, if people do not pass by in the prescribed time, system will cancel the right of this pass.
7) Normal open or normal closed can be adjusted to meet demands of different places.
8) Can be linked to many card-reading equipments, and work under receiving relay switch signal.
9) One-way or two-way in and out can be controlled.
10). Provide remote control and management by directly operating computer
11). Automatic return when there is time delay. Standard time is five seconds later after its opening
12). When electricity is cut off, gate opens automatically, and closes when electricity is linked. Meet the requirement of fire-fighting.
13). Sound and light alarm function, including break-in (rush from the opposite direction)
14). Counting function (optional)
15). Anti-pinch (4 pair infrared)
16. ) Accurate logic judgment and infrared reset/return function(4 or 6 pair infrared )
17). Voice output, voice notice of right passing((optional))
4.1 closing and opening time of gate: 1-2 second
4.2When electricity is linked, 3 seconds needed for its turning into passing state.
4.3when there is breakdown, 10 seconds is needed for its automatic return/reset
4.4 Working environment: Indoor, outdoor (shelter)
4.5 Temperature: -10° C— — 50° C, relative humidity: ≤ 90%.
4.6 sevice life: 3 million times, reading method: IC card/ ID card / barcode; Bothway card reading window, direcion guide, clamping advoid, automatical open when electricity is cut down, with infrared, rapidly control to fall the pole in emergency, 304 stainless steeL, thickness: 2.0mm, 6 pair infrared sensors
