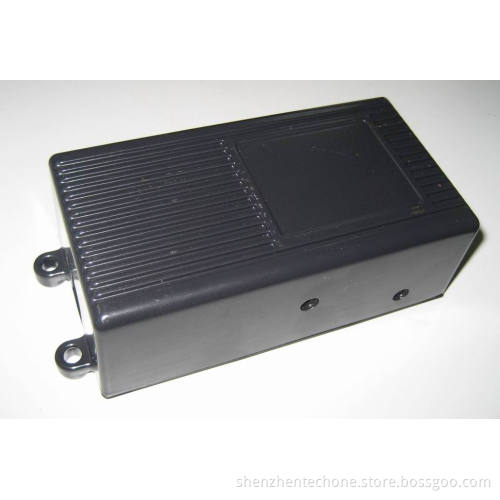

HID Electronic Ballast (TXA-70-220)
Strike voltage: 23~25KV
Required lamp voltage: 85~130V
V. In. Ranged at: 168Vdc~268Vdc
Rating V. In: 220/240Vac
Input frequency: 50Hz~60Hz
Power factor: >0.99
Efficiency: 93% (Max)
THD: <10%
Output power: 70W
Current crest factor: <1.5
Protection of short circuit: Yes
Protection of open circuit: Yes
Protection of ignition failure: Yes
Protection of thermal: Yes
Protection of end of lamp life (EOL): Yes
Weight: 0.9kg/2.1lb
Max. Lamp distance from ballast: 15m/49ft
Operating temperature range: -40 º C~+80 º C
Dimension (mm): 137 × 91 × 38 (mm)/5.394 × 3.583 × 1.496 (inch)
Max case temperature (T C): 100 º C
Safety and regulation: IEC61347
EMC: EN55015
