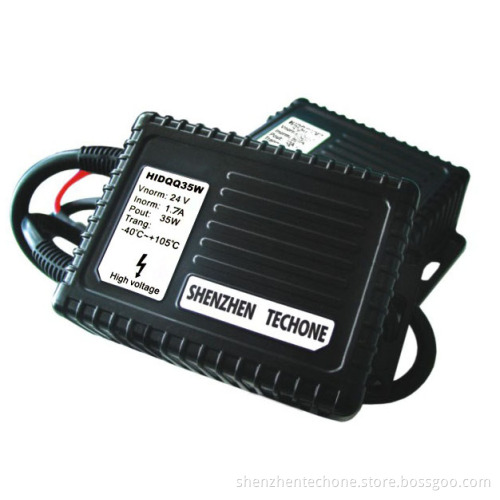

HID Xenon Electronic Ballast (HID QQ35W-B-24)

HID Xenon Electronic Ballast for 35W 24V Car Headlighting (HID QQ35W-B-24)
V. In. Ranged at: 18Vdc~32Vdc
Rating V. In: 24Vdc
Rating Current in: 1.75A+/-1%
Output load: One HID35W lamp
Output power: 35W+/-1W
Working temp: -40º C~+105º C in the extent of input
Reverse voltage protection: No damage against ballasts and bulbs will be caused by reverse connection.
Protection of short circuit: Lock protection against continuous or to long-time short circuit.
Protection of open circuit: Lock protection in 0.7s after open circuit.
Special request: Water proof, Shocking resistance
High voltage test: GND 500Vdc/1 min≤10mA/ 1 min
Isolated resistance: GND≥100MΩ
Dimension (mm): 122.5x80x37.5mm
Safety and regulation: IEC61347
EMC: EN55015
