Semi-Automatic High Speed Pick and Place Machine Jhtp-102, SMT Equipment, The Best Manufacturer in China.
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Shenzhen Guangdong |
---|---|
Payment Type: | L/C, T/T |
Product Description
Product Description

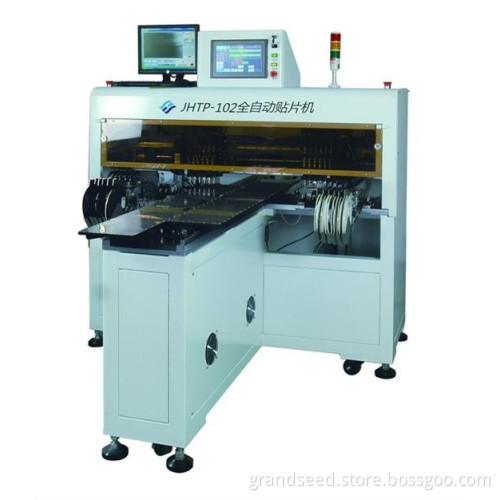

SMT EQUIPMENT JHTP-102
Specification
ITEM Detail
Head 5*2
Component Height Max 5mm
Board Size(W*D) 1200mm*330mm(JHTP-102: 1200*160*2)
Feeder Lanes 10Lanes*8mm
Component Supply Configuration 8~30mm Tape Feeder, Stick, Tray
Tact Time(Opt) 0.18sec/Chip
CPH 25000/30000h
SMD Components Size Chip: 0805~7070
Accuracy(mm) ± 0.1mm
Power Supply 220V, 50Hz
Rated Power Supply 1.5KW
Supply Air Source 0.45-0.5Mpa
Outline Dimension(W*D*H)mm 2050*1450*1600
Weight 650KG
Noise(Average for5minutes) 70DB
Key Part Brand
Device model JHTP-103
Material Brandplace of production
PLC KEYENCE(JAPAN)
Servo motor Delta(TaiWan)
CCD Point Grey(Canada)
Guide Shangyin(TaiWan)
Ballscrew NSK(JAPAN)
Cylinder SMC(JAPAN)
Vacuum pump Kawake(Taiwan)
Electromagnetic valve MAC(America)THY( Korea)
Fiber KEYENCE(JAPAN)
Bearing MISUMI(JAPAN)
Industrial control computer Advantech(Taiwan)
Specification
ITEM Detail
Head 5*2
Component Height Max 5mm
Board Size(W*D) 1200mm*330mm(JHTP-102: 1200*160*2)
Feeder Lanes 10Lanes*8mm
Component Supply Configuration 8~30mm Tape Feeder, Stick, Tray
Tact Time(Opt) 0.18sec/Chip
CPH 25000/30000h
SMD Components Size Chip: 0805~7070
Accuracy(mm) ± 0.1mm
Power Supply 220V, 50Hz
Rated Power Supply 1.5KW
Supply Air Source 0.45-0.5Mpa
Outline Dimension(W*D*H)mm 2050*1450*1600
Weight 650KG
Noise(Average for5minutes) 70DB
Key Part Brand
Device model JHTP-103
Material Brandplace of production
PLC KEYENCE(JAPAN)
Servo motor Delta(TaiWan)
CCD Point Grey(Canada)
Guide Shangyin(TaiWan)
Ballscrew NSK(JAPAN)
Cylinder SMC(JAPAN)
Vacuum pump Kawake(Taiwan)
Electromagnetic valve MAC(America)THY( Korea)
Fiber KEYENCE(JAPAN)
Bearing MISUMI(JAPAN)
Industrial control computer Advantech(Taiwan)
