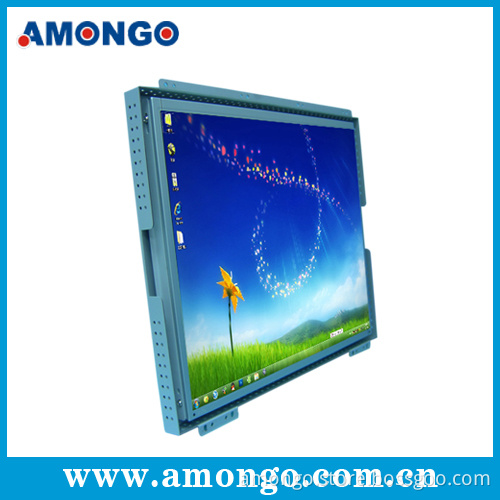

15'' Open Frame Industrial Touch Screen LCD Monitor

15'' Open Frame LCD Monitor with Resistive/IR/SAW/Capactive touch screen for ATM/ Kiosk/ POS application

Features:

AUO 15'' LCD, 350nits/1024X768
AD board with wide temprature range
Resistive/IR Touch
High brightness optional
Superior Durability, drift free
Contamination resistance, long life
Mechanical structure, easy installe
Easy replacement
High definition LCD monitor
High performance graphic controller on board
Cable sets, OSD and power supply available
Vesa-mount &Rear-mount optional
FCC, CE, CCC, RoHS, UL
Any Customized design available

Specification:

Model Name: AMG-15OPMD02N1
Viewable Size Image: 15"
Active Display Area (mm): 304.1 (H)X228.1(V)
Pixel Pitch (mm): 0.297(H)X0.297(V)
Number of Pixels: 1024X768
Contrast Ratio: 500: 1
Display Color: 262, 144(8bit + FRC)
Brightness (CD/m^2): 350CD/m^2
Viewing Angle (CR >=10): 140/120
Synchronization Range Horizontal / Vertical: 31.5~48.1kHz/56~75Hz
Recommended Resolution: 1024X768@60Hz, 75Hz
Signal Connector: 20 pin D-SUB
Power Source: AC 100~240V, Universal, ± 10%
Power Consumption: 13.3W typical, normal operation
Power Management: VESA DPMS Compliant
Plug & Play: VESA DDC 1/2B
Optional Video Input: S-Video, Composite, DVI
Optional DVI Input: No
Optional Touch Screen: IR/SAW/Capactive/Resistance

Applications
1. Kiosk information system
2. Gaming and amusement
3. Light industrial shop-floor automation
4. ATM
5. Medical treatment & medical player


Trade Terms:

1. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
2. Production lead time: 10-15days according to the order quantity
3. Sample lead time: 7days when there have stock material, 10days for current design, 15days for new design
4. Shipping Port: Shenzhen, China
5. Discounts: Based on the quantity, normally above 100PCS, we will give special discounts
6. MOQ: 1PC, any sample order are welcome for testing our quality
7. Discount for cooperative express company: TNT, DHL
Company simple profile:
Amongo technology Co., Ltd. is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor, etc., we developed a large number of LCD items, from 6.5'' to 42'' as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, and industrial control area. Any OEM product is available
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity of 10, 000PCS monthly, it's available for us to do the delivery in a short time. Our main markets: America, European, Middle-East countries and Asia areas.
