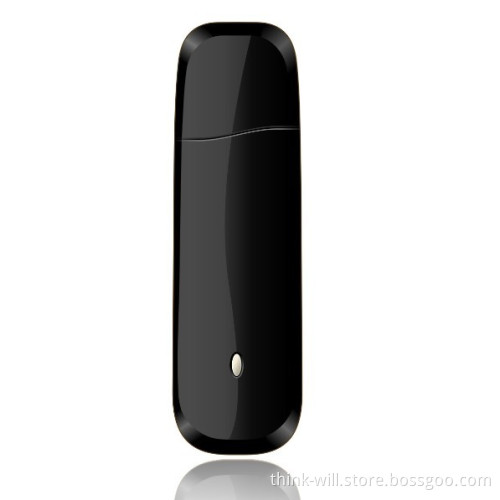

EVDO USB Modem (UE550)

Model EVDO USB MODEMThe USB-stick modem provides high-speed data services by accessing CDMA EVDO networks. The software is installed automatically. SMS servcie is also supported.
Technology
Base BandVIA
EVDOrACDMA 1XEV-DO Revision A DL 3.1Mbps UL1.8Mbps
EVDOr0CDMA 1XEV-DO Rel 0 DL 2.4Mbps UL153.6kbps
CDMA2000 1xCDMA 1XRTT DL153.6kbps UL153.6kbps
Frequency BandEVDOrA/EVDOr0/CDMA2000 1X800M/1900M
Power
ClassCDMA 800M/1900MPower Class 3(+24dBm)
Conduction Rx sensitivity800M/1900M< -108dBm
External InterfaceCDMA AntennaInternal Antenna
USB Typestandard 5V USB Interface
USB SpeedUSB 2.0 High Speed
Power ModePowered via the USB interface
SIM/USIM Cardstandard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
AT Interface 3GPP
Main FeaturesForm FactorUSB stick
Available ColorsBlack/White, other colors upon customer requirements
Dimension (mm) 88mm(L)× 26mm(W)× 10.5mm(H)
Weight (g) TBD
Visual Indicator(LED)a blue LED
Micro-SD Card SlotSupported, Max up to 32G Supported
Main Software FunctionsPIN1Supported, enable/disable/modify
Voice No Support
Languages SupportedChinese and English, more languages could be supported upon customer requirements
SMSSupported
PhoneBookSupported
SMS and Data service simultaneously OperationSupported
Setup ModePlug & Auto Installation
Zero-CD installationSupported
PhoneBooknew contactsSupported
Edit contactsSupported
Delete contactsSupported
Send SMSSupported
SMSGroup messagesSupported
New SMSSupported
Send SMSSupported
Save SMS to draftsSupported
Reply SMSSupported
Forward SMSSupported
Delete SMSSupported
Support OSWindowsWin7/WinXP/Vista/Win2000/Wince
MAC OSSupported
LINUXSupported
ANDROIDSupported
CertificationROHScompliant with RoHS
CEcompliant with CE
Microsoft WHQLSupported
OtherCould be supported upon customer requirements
Standard packingCDMA USB Modem1
Quick guide1
