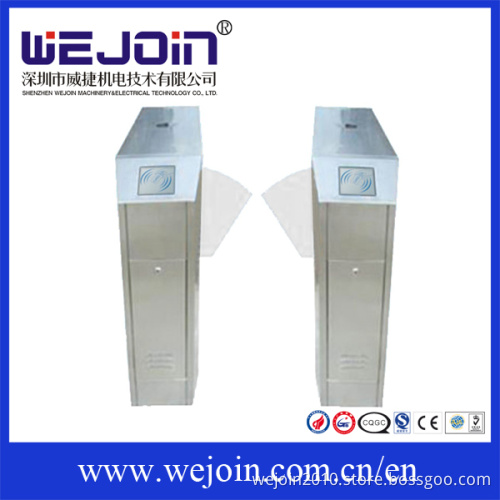

Automatic Flap Barrier for Access Control

Functions & Features
Stainless steel housing
Bi-direction pass
Interface for variety of card reader device: IC/ID card reader, bar code, fingerprint, etc.
Auto reset: P{assage will be locked up if passager does not pass in valid time. The standard passing time is 5 seconds
Auto open when power off, and auto close when power on
Fault self-cheching, easy for use and maintenance
Users can set the device running status with the buttons on the control panel
Infrared anti-cliping, reversing on obstacle
Alarm system can avoid unallowed pass
LED direction indicator
RS232 socket, LAN socket
Passenger counter (optional)
Technical Data
Voltage: 220V± 10%, 110V± 10%
Voltage: 50/60Hz
Control Circuit: DC12V
Consumption: 30W
Passing Speed: ≤ 35 Persons /min
Working Temperature: -20degree ~55 degree
Protection Gate: IP40
Communication Socket: RS232 standard socket/LAN socket
Functions & Features
1. Stainless steel housing
2. Bi-direction pass
3. Interface for variety of card reader device: IC/ID card reader, bar code, fingerprint, etc
4. Auto reset: Passage will be locked up if passenger does not pass in valid time. The standard passing time is 5 seconds
5. Auto open when power off, and auto close when power on
6. Fault self-checking, easy for use and maintenance
7. Users can set the device running status with the buttons on the control panel
8. Infrared anti-cliping, reversing on obstacle
9. Alarm system can avoid unallowed pass
10. LED direction indicator
11. RS232 socket, LAN socket
12 Passenger counter (optional)
