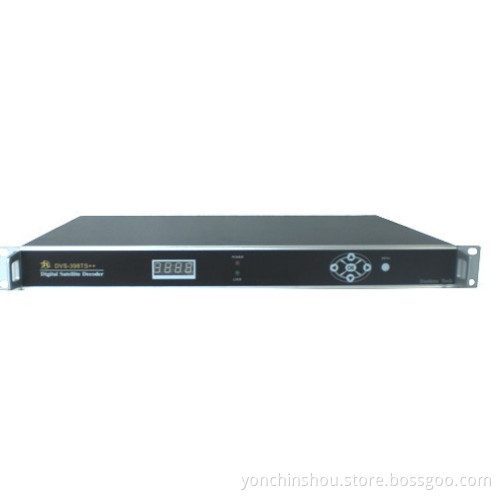

IRD FTA DVS-398TS++

Integrated Receiver Decoder (IRD) DVS-398TS++ is designated for FTA DVB-S MPEG-2 SD programs. It receives FTA programs and generate standard ASI stream for headend use. Analog A/V out ports are equipped on rear panel, which realizes real time monitoring.
Ethernet port RJ45 is equipped on this FTA IRD for remote control. Software is distributed with this machine.
2. Product Features
Specifications up to DVB-S MPEG-2 SD.
Dual ASI output ports (MPTS, same source).
CVBS video out, imbalance or balance audio out.
VBI receiving supported.
PAL/NTSC auto.
Ethernet port RJ45 for remote control.
Standard 19' one rack unit chassis.
Specifications are up to DVB-S/S2 MPEG-2 HD/SD.
CI slot compatible with standard CAM modules.
Dual ASI outputs which can be configured to contain decrypted programs only.
Various A/V out ports on rear panel make monitoring possible.
Resolutions supported: 1080I@50Hz, 1080I@60Hz, 720p@50Hz, 720p@60Hz, 576I@50Hz, 480I@59.94Hz.
Memory function: Parameters could be automatically restored when IRD is restarted.
Information on satellite and transponder could be edited.
Ethernet port RJ45 for remote control.
Standard 19' one rack unit chassis.
