Horizontal Directional Drilling Rig (HJ-10T)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Product Description

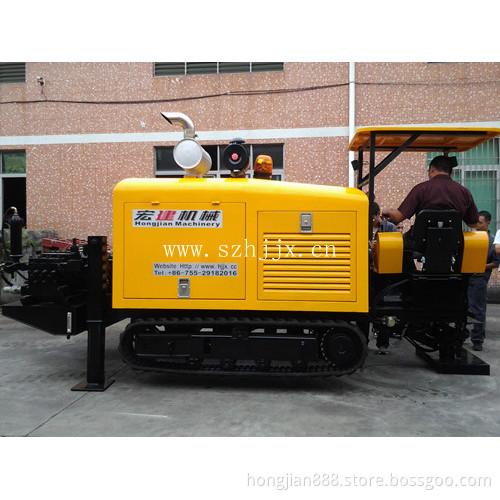

HJ-10T Horizontal directional drilling machine
USE:
HJ-10T Horizontal directional drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway.airport runway,river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. and most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation
WORK ABILITY:
It could drill and pullback the steel pipe(dia:108mm) which length is about 150M. (Remark: The specific length will depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. diameter of the pipe could be 400mm.
WARRANTY AND SEVICE
1 year warranty, and we could offer after sales person to train our client how to use the machine.
USE:
HJ-10T Horizontal directional drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway.airport runway,river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. and most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation
WORK ABILITY:
It could drill and pullback the steel pipe(dia:108mm) which length is about 150M. (Remark: The specific length will depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. diameter of the pipe could be 400mm.
WARRANTY AND SEVICE
1 year warranty, and we could offer after sales person to train our client how to use the machine.
| Parameters Model | Unit | HJ-10T |
| Diesel engine power | kw | 75 |
| Max Spindle Torque | Kn | 2500 |
| Max Pullback force | kn | 100 |
| Max thrust force | kn | 60 |
| Spindle speed | r.p.m | 0-100 |
| Entry drill angle | ° | 25 |
| Max mud flow rate | L/min | 150 |
| Max fluid pressure | Mpa | 8 |
| Drill rod(dia.x length) | mm | Φ50*2000 |
| Outline dimension | mm | 4300*1600*2000 |
| Weight | kg | 3800 |
