Horizontal Directional Drilling Machine with Auto Ground Anchor and Drill Pipe Feeder Hj-32t
- Payment Type:
- L/C, T/T, Western Union
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description

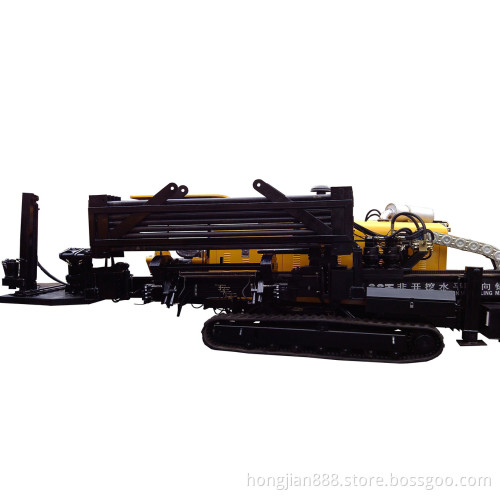

HJ-32T Horizontal Directional Drilling Machine with Auto Ground Anchor and Drill Pipe Mechanical Arm
USE:
HJ-32T horizontal directional drilling machine with auto ground anchor and drill pipe mechnical arm is used for cables laying underground. The machine could drill the hole and get through the road, railway.airport runway,river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. and most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation.
Auto drill pipe feeder is more portable for the drill pipe loading on the machine.
Auto Anchor could fix the machine easily.
WORK ABILITY:
It could drill and pullback the steel pipe(dia:108mm) which length is about 450M. (Remark: The specific length will depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. diameter of the
pipe could be 900mm.
WARRANTY AND SEVICE:
1 year warranty, and we could offer after sales person to train our client how to use the machine.
SPECIFICATIONS:
| Parameters Model | Unit | HJ-32TA |
| Diesel engine model | Cummins | 6CTA8.3/C215 |
| Diesel engine power | kw | 160 |
| Max spindle torque | Nm | 15000 |
| Max pullback force | kn | 380 |
| Max thrust force | kn | 380 |
| Output rotary speed | r.p.m | 0-100 |
| Entry drill angle | . | 3-25 |
| Max displacement of mud pump | L/min | 320 |
| Max pressure of mud pump | Mpa | 10 |
| Drill rod | mm | Φ73*3000 |
| Size of rig | mm | 7200*2250*2280 |
| Weight | kg | 9600 |
