Rotary Encoder, Absolute Encoder, Position Sensor

Product overview:

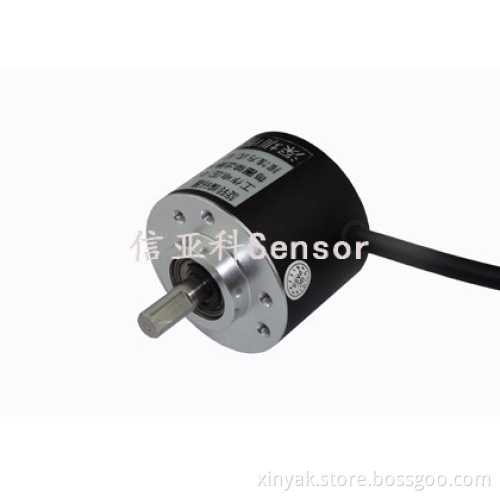

Intelligent rotary encoder is one of the most commonly measurement components in the area of industrial automation. It mainly used in the electric motor and various automation equipment to detect angle-position and measure speed.
We provide various industrial standard increment encoders such as open-collector, push pull output, long-distance drive and so on, which can connect most frequency converters and interface cards.
We also provide absolute encoder such as SSI, RS232, RS485, PI, gray code, binary, multi-circle and so on. For the detail information, please contact sales department.
Pulse Width Modulation is a very effective technology using the digital output of the microprocessor to control analog circuits, widely used in measurement, communications, power control and conversion and many other fields.
Encoder standard outside diameter is 38mm or 32mm, standard shaft diameter is 6mm, max 14 bit p/r resolution, 13 p/r accuracy.
Mechanical Parameter:
Parameter Value Unit Remark
Quality Working Temperature -40~85 deg
Store Temperature -50~125 deg
Protection Grade IP55 Excellent resistance of water, oil and dust ability, allowing condensation, max IP68
Anti-vibration Anti-shock Starting Toque Rotor Inertia Max Shaft load 60 N Radial Direction
80 N Axial Direction
Axial Movement Mechanical Speed Pulse Width Modulation is a very effective technology using the digital output of the microprocessor to control analog circuits, widely used in measurement, communications, power control and conversion and many other fields.
In practical engineering, the rotary encoder outputs a PWM signal corresponding to an absolute angle value, and can use digital processors I / O interfaces and timer to sample directly, which is convenient and rapid for developers, while reducing hardware costs. Absolute encoders regular outlet form is side outlet, 3-wire. Non-standard outlet form can be customized.
Electrical Character:
Supplying voltage: 4.75-5.25(V) typical value: 5V
Current consumption: 20mA
PWM frequency: 1000Hz
Measurement range: 0-360 deg
