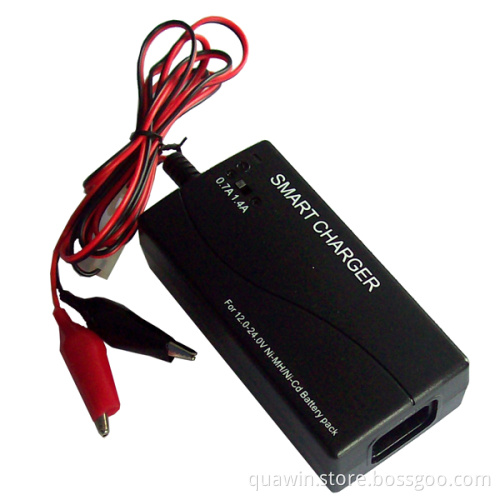

Smart Universal NiMH Battery Charger (12V-24V)

Features and Benefits

. Best charger for charging all NiMH/NiCd battery packs 12V, 13.2V, 14.4V, 15.6V, 16.8V, 18V, 19.2V, 20.4V, 21.6V, 22.8V, 24V
. Universal for any NiMH/NiCd battery packs 12V-24V(10-20 NiMH/NiCd Cell packs)
. Fast charger with current switch to select either 0.7A and 1.4A
. Charge Current 0.7A for battery packs with capacity from 1100mAh-2200mAh. For 2000mAh pack, charging time is 3.5 hour.
. Charge Current 1.4A for battery packs with capacity above 2000mAh. For 3000mAh pack, charging time is 2.5 hours.
. Smart Charger: With automatic voltage detection.
. Use pulse technology to avoid battery overheating during fast charging. Optimized for battery pack's cycle life.
. Red LED will be on during charging.
. Automatically charging ending with negative delta V.
. Worldwide usage with 100-240V AC
. Safety protection fuse for over current, short circuit & reverse polarity protection.

Accessorises Included

. 1 standard Tamiya Female connector with the smart battery charger.
. 1 connector adaptor from standard male tamiya to mini female.
. 1 set of clip adaptor with male tamiya connector on one end.

Smart charger specification

. For 12V-24V NiMH/NiCd Battery Packs(10-20 Cells in series)
. Input: AC100-240V
. Output: 12V-24V 0.7A or 1.4A

Operation Instrucion

. Connect battery pack to output connector and plug AC power source.
. Make sure battery polarity is connected correctly (Red wire is positive)
. Charger will detect battery voltage automatically, Red LED will be on during charging.
. When battery is fully charged, current will reduce to trickle charging at 50mA, Green LED will be on.
. Battery will be charged at 0.7A or 1.4A constant current.
. Don't charge battery pack with voltage less than 12V or Voltage bigger than 12V and Capacity less than 700mAh.
. Please contact your seller for instruction. MFG is not responsible for any damage and consequent damage by Misuse,
