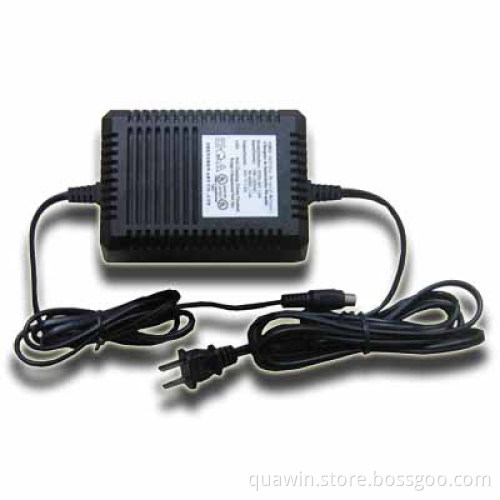

Smart Lion Battery Charger (42V/1.8A)

41V/1.8A Li
3PX 0-L7042 37V(10serial) Lion battery pack charger
Item Unit Specification Remark

Input
1 Rating input Voltage Vac 100-240Vac 50/60Mz
2 Input Voltage range Vac 90-264Vas
3 Rateing input current A 1.3A Input: 220V, Output: Full Load
4 Max. Input power W 90

Output
5 Rating output Voltage Vdc 41V
6 Output Voltage range Vdc 30V-42V
7 Suit with battery type A 37V(10serial) 4-12ah Lion
8 Charging current A 1.85@41V
9 Charging Voltage V 41.9
10 Cut-off current A 0.15-0.2A
11 Tipycal charging time Hour 7-8hours for 8000mah
12 Max. Output power w 80W
13 Hold on time ms NC Input: 220V, Output: Full Load
14 Ripple current mA 100 Input: 220V, Output: Full Load
15 Charge finish condition V>41V, I<0.2 A
16 LED color Red: Charging; Green: Finish
17 Output protect OCP&OVP
18 Efficiency % 80% At max. Load

Environment
19 Operate temperature — 10-+40 Full Load &Nature convection
20 Operate humidity %RH <90 Relative humidity and non-condensing
21 storge temperature — 40-+70
22 Storge humidity %RH 0-95
23 Cooling Nature convection
24 Temperature factor %
25 Vibration resistance 5MM/50HZ/600S Non-operating condition
26 Impact resistance 1 meter drop set>=3times Non-operating condition

Mechanical
27 weight g 550
28 size mm 129X91X68 casing only
29 Connectors Defined when order safety
30 Max. Tempreture rise <40 on casing at any line and Max. Load
31 Safety standard EN60335-2-21
32 EMC standard EN55014
33 MTBF Hours 30000
34 limited power source Vac
35 ESD Kv 8
36 Hi-pot Insulation I/P to O/P: 3000(1 min) For final unite cut-off current=10MA
