Laminated Safety Glass

Laminated safety glass:

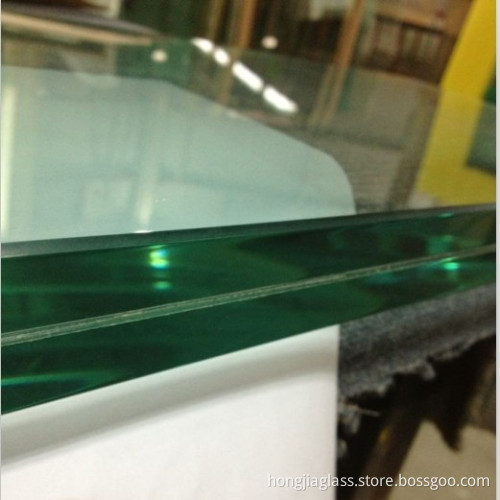

It's called Laminated glass which a combination of PVB or SGP interlayer in between the two pieces of glass. It is fabricated under high pressure and high temperature. The viscosity of PVB is excellent. When the laminated glass breaks, PVB is able to absorb impact. Laminated glass is resistant to impact penetration.


Product Features:

1> Safety
2> Typhoon& Earthquake Resistant
3> Anti-bullet Glass
4> Anti-UV
5> Sound protection

Laminated glass specification:

Glass Max size: 3000mm*7500mm
Min size: 100mm*100mm
Glass Thickness(mm): 3+3, 5+5, 6+6, 6+8, 8+8, 8+10, 10+10, 10+12, 12+12, 15+15, 19+19 or triple glazing or multilayer
PVB thickness: 0.38mm/0.76mm/1.14mm/1.52mm/1.9mm/2.28mm/3.04mm
PVB color: Clear, milky white, light grey, blue, yellow or any ceramic frit colorCurved laminated glass subjected to the radius required.

Application:
1) Exterior Construction: Curtain Wall, Building Window, Door, Skylight, Roof(Dome), Balustrade...
2) Interior which request safety glass: Bathroom door (shower screen), Staircase fencing and step, Floor, Partition, Wall background, Waredrobe Door...

Quality certificate:
CCC (China Compulsory Certification);
GB/9962-1999< Laminated glass> standard
GB/17840-1999< Bullet-proof glass> standard
UK-BS6206
