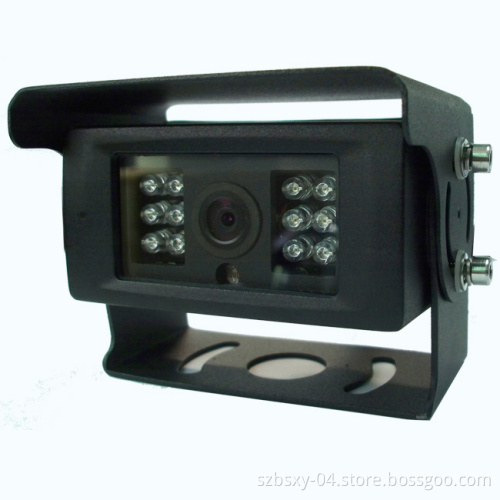

Super Wide Rear View Camera (JY-6731)

Model:JY-6731
Chip performance:
Image Device: 1/4 SHARP CCD
Resolution: 420TV lines
TV System: PAL/ NTSC
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm
Scanning System: 2:1Interlace
Sync. System: Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Product's idiomatical performance :
Heavy-duty camera
Lens Angle: 120°
Infrared LED light: 12 PCS
IR Distance: 15 m
Waterproof Rate:IP69K
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Current Consumption: Max. 190mA
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX
Product's featured functions are optional:
Chip CMOS
Chip SONY 420/480/520/560 line
Mic: collects the environmental sound around the camera
Self heating: The cameras will entry the self-heating mode when the environmental working temperature is lower than 10 deg. And it wills automatic stop heating when the temperature reaches 30 deg .
Mirror & non-mirror images option (adjusted by screw)
Superficial colors are optional: black, white, silver
Dimensions:
Dimensions : 85 (L) ×50 (w) ×75(H) mm
N.G:
