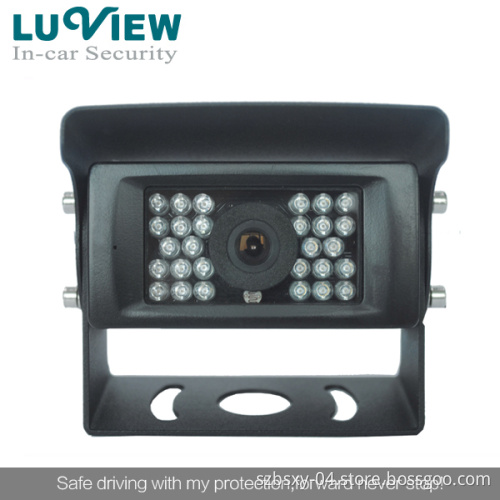

IP69k Waterproof Rear View Car Camera

Model: JY-6732
Chip performance:
Image Device: 1/4 SHARP CCD
Resolution: 420TV lines
TV System: PAL/ NTSC
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm
Scanning System: 2: 1Interlace
Sync. System: Internal
Horizontal Sync. Frequency: 15.625 kHz / 15.734kHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on) 0.1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10, 000 Seconds
BLC: Auto
Product's idiomatical performance:
Heavy-duty camera
Lens: 2.5mm
Lens Angle: 120°
Infrared LED light: 28 PCS
IR Distance: 20 m
Waterproof Rate: IP69k
Shell material: Aluminum alloy
Bracket material: Iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Current Consumption: Max. 230mA
Power Supply: DC12V
Operating Temperature: -20° C~70° C, RH95% MAX
Storage Temperature: -40° C~80° C, RH95% MAX
Product's featured functions are optional:
Chip CMOS
Chip Sony 420/480/520/560 line
Super wide angle (180° )
Mic: Collects the environmental sound around the camera
Self heating: The cameras will entry the self-heating mode when the environmental working temperature is lower than 10 deg. And it wills automatic stop heating when the temperature reaches 30 deg.
Mirror & non-mirror images option (adjusted by screw)
Superficial colors are optional: Black, white, silver
Imensions:
Dimensions: 85 (L) × 50 (w) × 75(H) mm
N. G: 700g
