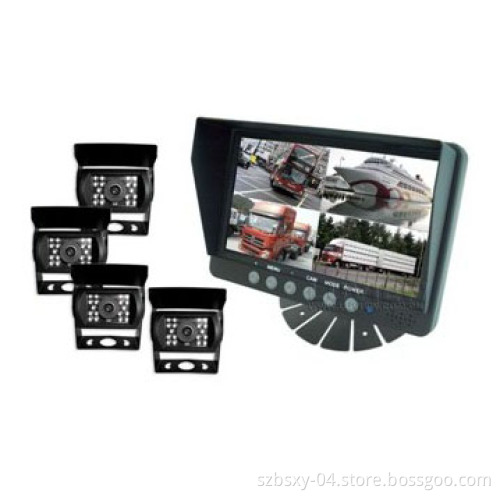

4 Camera and Split Function Backup Camera System (JY-M070R, JY-663)

Key Specifications/Special Features:

Stand-alone monitors built-in quad control box function
Rear view monitor supports four camera inputs
Single / split/ quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
Technical data
7-inch TFT LCD monitor, 16: 9
Wide view angle(CR>10): (up/down/left/right): 40/40/60/60
Resolution: 800 R. G. B X 480 dots
Color system: PAL/NTSC(selectable)
Power requirement: 12/24V DC
Power consumption: ≤ 5W
Operating temperature: -20 to +50Deg C
Dimension(L X W X d): 183 (L) X 125 (W) X 38 (D)

Camera Information:

Model No.: JY-663
Product Abstract:
Infrared LED light: 18 PCS IR Distance: 15 m Waterproof Rate IP69 Shell material: Aluminum alloy Bracket material: Nylon fabric
Chip performance:
Image Device: 1/4 SHARP CCD
Resolution: 420TV lines
TV System: PAL/ NTSC
Effective Pixels: 512 X 582 pixels / 512 X 492 pixels
Sensing Area: 3.6mm X 2.7mm
Scanning System: 2: 1Interlace
Sync. System: Internal
Horizontal Sync. Frequency: 15.625 kHz / 15.734kHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on) 0.1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10, 000 Seconds
BLC: Auto
