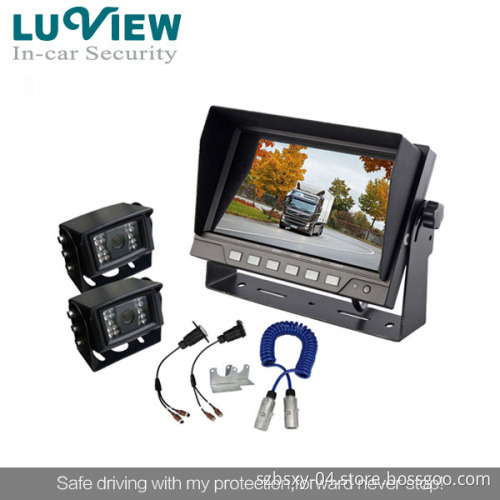

Car Rear View System for Airport Bus

Product Name:
7 Inch Quad optional monitor
Model No.:
JY-M7302, JY-665
Product Abstract:
Dimension: 7 Inch Digital Color LCD Quad monitor. TV System: NTSC/PAL Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German, Italian

Product Description

LCD-TFT Performance
Dimension: 7 Inch Digital Color LCD monitor.
TV System: NTSC/PAL AUTO
Resolution: 800 X 3 X(RGB)X 480
Brightness: 400CD
Contrast: 500: 1
Lattice distance: 0.192(H) X 0.1805(V)
Aspect ratio: 16: 9
Viewing angle: U: 50° / D: 60° , R/L: 70°
Rating: 20, 000 hours
Products featured function
Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German
With remote control
Monitors can be optional with loudspeaker or not, users can adjust sound on the control panel or remote control
Screen display mode can be switched the day mode & night mode by pressing button
Support 2 cameras video simultaneous input
Support 2 cameras audio simultaneous input
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
The trigger delay time can be adjusted (0-4s) on each camera.
In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image.
Working voltage: 12-32V
