Polarization Insensitive Optical Circulator

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdongshenzhen
Payment Type:	L/C, T/T

Product Description

Applications
Optical Amplifier
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Bi-Direction Communication

Features
Low Insertion Loss
Wide Band High Isolation Low PDL
Compact In-line Package
High Stability and Reliability

Parameter	Unit	3 port													4 port
Wavelength Range	nm	1310			C-band			C+L band						1310 or C-band
Grade		P	A	P		A	P			A		P				A
Insertion loss (CWL, Operating Temp.)	dB	0.8	1	0.8		1	1			1.1		1				1.2
Isolation (CWL, 23ºC)	dB	50			50			40						45
Isolation (CWL, Operating Temp.)	dB	40			40			30						35
Max. PDL	dB	0.15			0.15			0.15			0.2		0.15				0.2
Max. PMD	ps	0.1			0.1			0.1						0.1				0.1
Max. WDL	dB	0.2			0.2			0.4						0.2				0.2
Max. TDL	dB	0.2
Min. Return Loss	dB	50
Min. Directivity	dB	50
Max. Optical power	mw	300
Operating Temperature	ºC	0~+70
Storage Temperature	ºC	-40~+85
Fiber Type		SMF-28e fiber

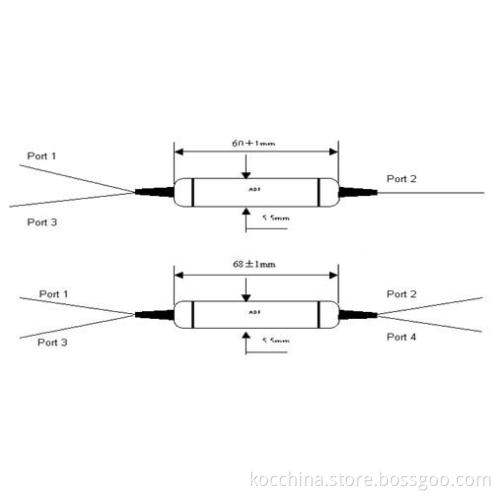

Package Dimension	mm	φ5.5xL50							φ5.5xL67

1. Above specifications are for device without connector.

Ordering Information

PIOC	port	Wavelength	Grade	Fiber Type	Fiber Length	In/Out Connector
	3=3 port	13=1310nm	P=P Grade	1=Bare Fiber	1=1.0m	0=None
	4=4 port	15=1550nm	A=A Grade	2=900um loose tube	2=2.0m	1=FC/APC
		CL=1470 to1610nm		3=3mm Cable	SS=Specify	2=FC/PC
						3=SC/APC
						4=SC/PC
						5=ST
				,		6=LC
