LED Energy Saving Bulb Tube Fluorescent Light Test Equipment Machine Device Instrument

LED energy saving bulb tube fluorescent light test equipment machine device instrument

Attn: Johnson
Mobile: +86 132 4292 0657

Function
Text parameter: Power, Power factor, Voltage, Current, Annual power consumption(calculated by 10hrs/day), Lumen, CCT and CRI.
Testing lamps: Energy saving lamps, tubes, LED lamps, halogen lamps big ball chandelier lighting ect.

Specification
Item: Spectroradiometer
Model No. Lt-SM901B
Input Voltage: 100~250V/AC
Testing Voltage: 0~50A
Testing Maximum wattage: 300W
Accurate rating: 97%
Repeatability: 0.1nm
Wide sampling band: 1nm, 5nm
Photometric accuracy: 0.5%
Operating tempreture: 25° C± 5° C
Sphere diameter: 0.25M\0.5M\1M\1.5M\2M
Weight: 300kgs
Meet the requirement of IEC standards.
Spectrum range: 380nm-800nm
Make use of C-T monochromator and filter to realize double dispersion.
With the latest Hall sensitve technique, the wavelength is automatically positioned
High sensitivity and wide dynamic range: 2.56*106, 4*1010
Wide sampling band: 1nm, 5nm
Repeatability: 0.1nm
Auto-adjust of the stalls.
RS-232C standard interface and easy to connect with any computer.
Photometric accuracy: 0.5%

Advantage
High accuracy.
High stability.
High speed.
Multi accessories available.
Except testing Lumen, CCT, but also CRI.
Testing report can be printed out.
Easy operation.
Digital display.
Equipped with different adaptor(B22, E14, B15, GU10, MR16).
Different sphere diameter are available.
Small size, big usage.
Calibrating the model by yourself with calibration lamp.

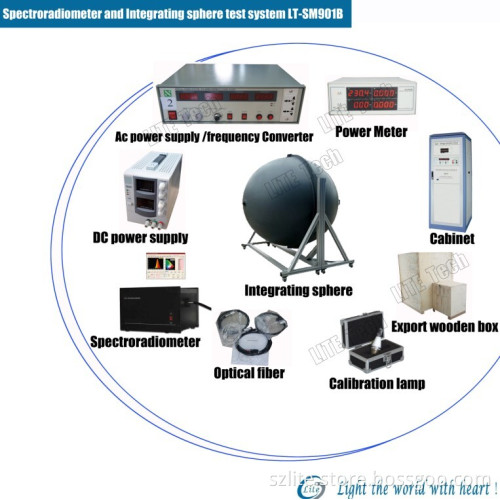

System accessories

Testing report sample

Spectral parameter columm

(Chromaticity coordinates(X, y),
Correlated color temprature(TC),
Color rending index(Ra),
Luminous flux (Flux),
Color tolerance(SDCM),
Color difference (EΔ ),
Domain wavelength( Domain. W),
Color purity(Purity),
Rference light source(Reference)

Shipping terms

Fast shipping from our Shenzhen China Factory.
Item shipped in 5-7 working days after receving the payment.
Products shipped by UPS, DHL and others, depending on size and weight of total order.
Tracking number will be sent to you as soon as we ship the goods.

Commitment
We strive to provided our clients an exceptional quality service from the moment you ask for an inquiry. We understand that selecting the right products is essential to your success, which is why we follow the high quality standards from R&D component selection to production assembly to ensure that all of your requirements are completely understood, and can be met in full.

We are always on hand to assit with inquiries, whether it is help or guidance with technical specifications, or just some friendly advice, we are never too busy.

With 2 years warranty if non-human reason error, free of charge replacement is available.
