Industrial Panel PC

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

Main features
8'' industrial panel PC with ATOM N2800 Dual core 1.8GHz.
SSD 16GB/32GB(Optional)
DDR3 2GB/4GB memory (Optional)
With better design of Al cooling fin on back
WiFi (Optional)
Touch screen (Optional)
Introduction
IPPC-8100 is an industrial panel PC with 8″ high brightness LCD, the latest low-power motherboard, 16G SSD. It comes with 2*LAN, 4* USB ports, 5*COM, 1*VGA, 1*audio, 1*HDMI.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-8100 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.

CPU		Onboard Intel ATOM N2800 dual core 1.8GHz
Chipset		Intel NM10
Display	8″high-brightness LCD screen
Resolution	1024 x 768, 250cd/m2
Memory	DDRIII 2GB, up to 4GB
HDD/SSD	HDD:320GB; SSD: 16Gb/32Gb( Optional)
Audio interface	Line Out
Network interface	2 x 10/100/1000Mbps Ethernet controller
I/O:	5 x RS232 (1 supports 485/422)
	4 x USB2.0
	1 x VGA
	1 x HDMI
	2 x LAN
	1 x Line out
Touch screen	4 wires Resistive touch (optional)
Power Supply	DC12V 5A power adapter,AC100V~265v 65HZ

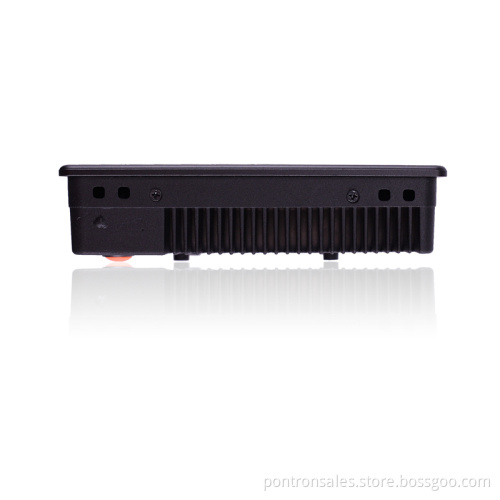

Cooling	Al cooling fin on the back of Chassis
Color	Black/Silver(Optional)
Fanless	Fanless design

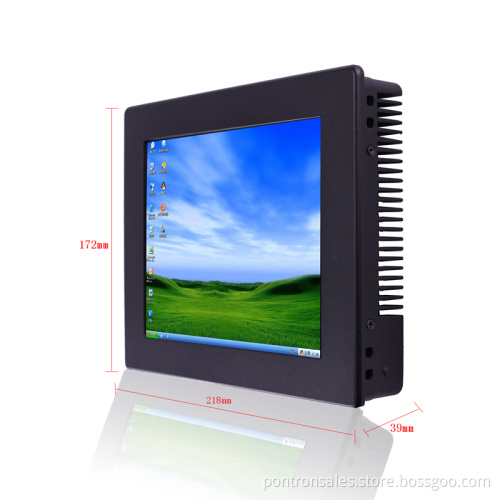

Dimension	218mm(L)x 172mm(W)x 40.5mm(H)
Package	295mm(L)x 215mm(W)x 95mm (H)
Installation	Panel type, wall- mount, table, bracket etc
Net weight	Abt 1.9Kg
Gross Weight	Abt 2.6Kg
Operating temp	-10ºC~60ºC
Humidity	-20ºC~80ºC
Ordering information	IPPC-8100: 8″Industrial Panel PC,w/CPU: ATOM N2800 dual core 1.8Ghz,w/RAM:2G,w/SSD:16G,w/12V power adapter.
	IPPC-8100T: 8″Industrial Panel PC,w/CPU:ATOM N2800 dual core 1.8Ghz,w/RAM:2G,w/SSD:16G,w/12Vpower adapter , w/Touch screen
