Mini-Itx Mother Board with Intel IVY Brideg 1037u 1.8GHz

Mini-Itx Mother Board with Intel IVY Brideg 1037u 1.8GHz

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Main feature
· Intel C1037U 1.8G
. Support 6*RS232 COM
· Support DDR3 1066/1333 Memory
. Support 24-bit LVDS Connectors

Introduction

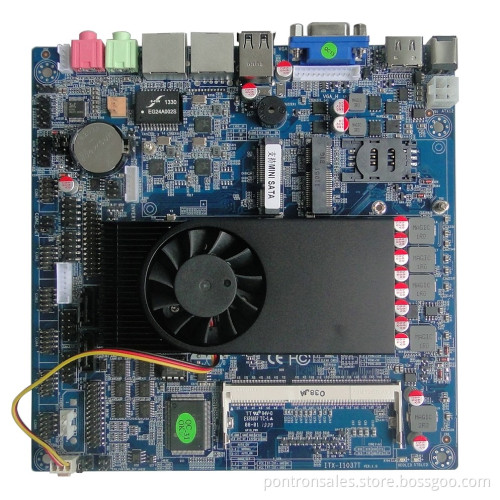

PT-C1037B is MINI ITX mother board with Intel C1037A 1.8G, Intel C1037U+NM70 chipset. It has 6*RS232, 2*MINI PCIE, 2*SATA connector, 1*MINI PCIE and PCI socket, support DDR3 1066/1333Memory, max up to 4GB. It's very economical solution. PT-1037B can be used widely to equipment, automation, transportation, Kiosk, All-in-one Fanless Design PC etc.

CPU	Intel C1037U 1.8G
Chipset	Intel C1037U+NM70
Memory	1 x SODIMM DDR3 1066/1333,Max 4GB
Storage	2 x SATA
Expansion Slots	2 x MINI PCIE
	1 x VGA
	1 x HDMI
	4 x USB
	1 x RJ45 Gigabit LAN
	1 x AUDIO LINE OUT\MIC IN
Internal I/O Port	6 x RS232 header
	2 x USB header
	1 x VGA header
	1 x AUDIO header
	1 x 24-bit LVDS Connectors
	1 x LVDS-PW Connectors
	1 x GPIO header
	1 x PS/2 Keyboard/Mouse header
	1 x 4Pin POWER Connectors
Power supply	DC 12V
Dimension	MINI-ITX 170 x 170mm
Operating Tempe	0°C ~ 60°C
Storage Tempe	-20°C ~ 70°C
Storage Humidity	5~90%@40°C(non-condensing )
PT-1037B	Mini ITX mother board with onboard Intel C1037U1.8Ghz,6RS232,1LAN
