Product Description

Main Feature
· Compacting fanless design
· Intel ATOM D2550 Dual Core 1.86GHz
· Support 6*RS232 COM
· Support DC12V power supply
Introduction

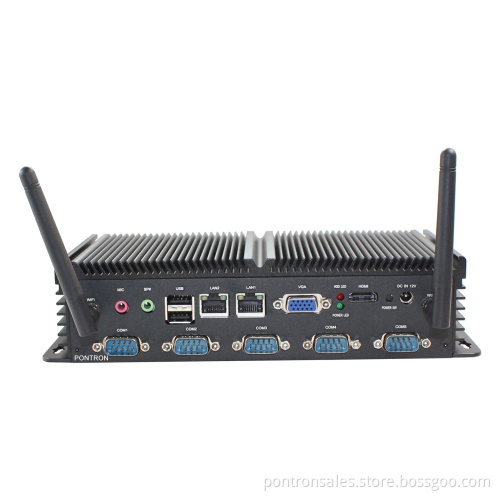

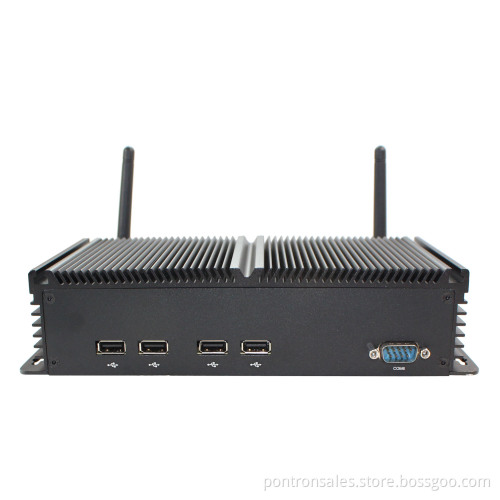

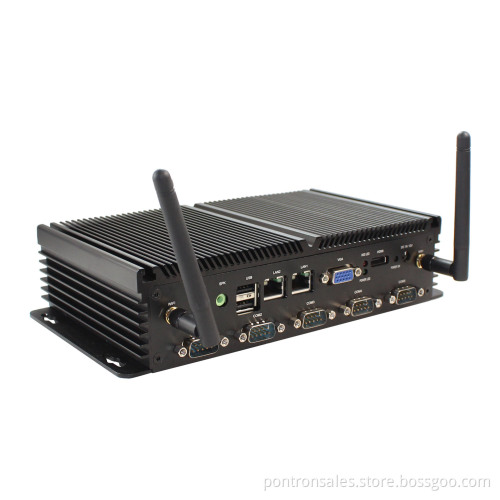

IBOX-2550A is Industrial grade MINI box PC's with Intel ATOM Dual Core 1.86GHz CPU, Intel NM10 Chipset, which comes with 1*VGA, 1*HDMI, 6*RS-232, 2*RJ45 10/100/1000M LAN, 6*USB2.0 with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation, automation, communication etc.

Material	Industrial Al-alloy
CPU	Intel ATOM N2800/D2550 Dual Core 1.86GHz (optional)
Chipset	Intel NM10
Memory	DDR3 2G/4G(optional)
Storage	2.5"SATA 500G HDD,16G/32G SSD(optional)
I/O	1 x VGA,1 x HDMI
	6 x RS-232
	2 x RJ45 10/100/1000M LAN
	6 x USB2.0
	1 x Line Out,1 x Mic
	WIFI/3G(optional)
Power supply	DC 12V Input
LED light	1 x Power LED,1 x HDD LED
Watchdog timer	Programmable overtime interrupt or recovery
Color	White(optional)
OS	Windows 7,Windows XP, Windows XP Embedded,Linux
Dimension	234 x 122 x 54mm
N.G	2.5KG
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Storage Humidity	5~90%@40°C(non-condensing )
Vibration	5 grms / 5 ~ 500Hz in working status(SSD) 1 grms / 5 ~ 500Hz in working status(Built-in HDD module)
Shock	50 g peak acceleration(11ms duration)(SSD) 20 g peak acceleration(11ms duration)(Built-in HDD module)
Ordering Information	IBOX-2550A:Mini box PC's with Intel ATOM D2550 Dual Core 1.86GHz, W/SSD16G, W 2G memory, 12V power supply.
