Dia 515 High Power 200W LED High Bay Outdoor IP65.

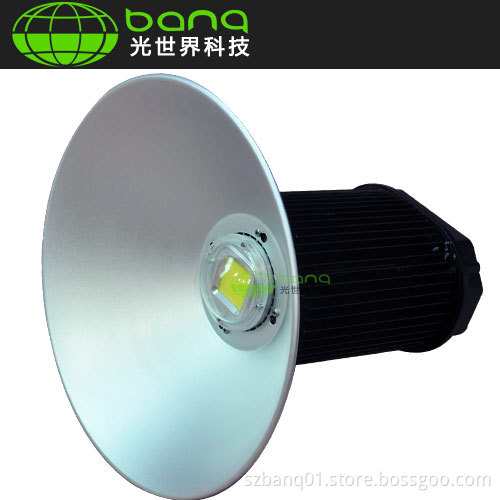

Dia 515 High Power 200W LED High Bay Outdoor IP65


Features

1. High light efficiency imported LED chip, the luminous flux could reach 100LM/W.
2. Special design for the heat dissipation, It connect well with the electrical cove, make the heat transfer 3. Sufficient, to ensure the life span of the products.
4. It could save 70% energy then the traditional light.
5. It has good weather ability. The waterproof level is IP65 and the insulation class 1
6. The efficiency for the driver of the power is 91%, which make the LED working steadier.
7. It's environmental protection, no PB and Hg.

Parameter

Input Voltage: AC85V~240V
Freqency Range: 50Hz~60Hz
Power Factor: >0.98
Power Efficiency: >87 %
Working Voltage: DC30~36V
Led QTY: 1 pc
Led Luminous Efficiency: 70-100 Lm /W
Led Consumption: 190W
System Consumption: 212W
Lamp's Efficiency: >91 %
Color Rendering Index: Ra>75
Light Design: LED+ secondary distribution with reflective shield
Working Temperature: -40° C ~ +55° C
Storage Temperature: -25° C ~ +65° C(25° C pefect)
IP Grade: IP65
Power line: 1.0mm2 three-coin calbe


Application

It can be used in workshop, factory, warehouse, Mautstelle, gas station, Supermarket, exhibition hall, gym and other lighting places
