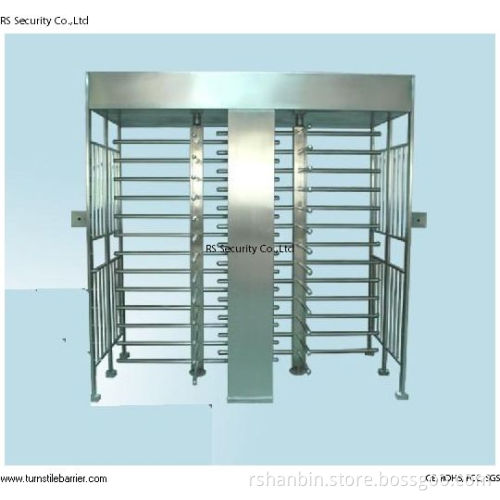

Full Height Turnstile for Access Control RS 998 (RS Security)

Full height turnstile For Access Control RS 998(RS Security )


Access control, Time Attendance, Parking system, Traffic Barrier, Turnstile, Tripod Turnstile, Security Gate, Boom Gate
Turnstile
Turnstile
Turnstile
Turnstile
Turnstile
Turnstile
Turnstile
Turnstile

Specifications

1. Full high & Bi-directional
2.304 stainless steel
3. RFID/fingerprint/barcode control
4. Automatic & high speed

1. Revoling door size: 120 degree 2200L x 1400W x 2300Hmm(canbe change)
2. Material: Cold-rolled steel plate
3. Signal: Passive node; TTL signal;
RS485/RS232 communication interface(optional);
TCP/IP communicate interface (optional)
4. Turning direction of gate Bar: Bi-directional, single-directional(optional)
5. Controller: Using 16-bit microprocessor as a core device,
Can be processed according to client's requirement
6. Interface: Standard input /output interface
7. Working Power: AC220V (adjustable)
8. Power (optional): AC220V(adjustable);
DC24V/3A(adjustable); DC12V/3A(adjustable)
9. Working Environment: Indoor/outdoor applications
10. Working Temperature: - 25° C ~ 65° C
11. Humidity: 5%~90%
12. On/Off Time: 1second
13. Failture Status: Allow passing after power interrupt
14. Light Indication: Green light passing; Forbidden passing for red light
15. Casing Protection: Sealing for waterproofing
16. Service Life: Continous rotation of more than 3 million

RS998 is designed to provide unsupervised access control for office or building. The impenetrable contruction eliminates any unauthorized access to restricted areas. To gain authorized passage through the WS-G06, the user must pass a valid identification usually press a RFID card for the access control system. Upon presentation of the valid card. The WS-G06 will unlock and allow the user to pass through the direction requested. The turnstile can also working with push button, finger print and face recognition access control system.

RS998 is designed to combine the functions of two single rotor turnstiles into one turnstile. The intermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reduction of passage space. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless steel construction is suited for interior or exterior application.
