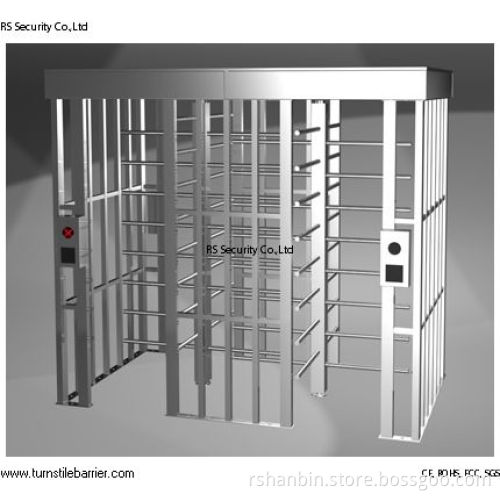

Pedestrian Full Height Turnstile Gate RS 998 (RS Security)

Pedestrian Full Height Turnstile Gate RS 998(RS Security )

Access control, Time Attendance, Parking system, Traffic Barrier, Turnstile, Tripod Turnstile, Security Gate, Boom Gate

Rotate turnstile gatespeed gate turnstile
Road barriersecurity gate
Waist height turnstilesecurity wing barrier
Wing gate turnstilesafety wing barrier
Wrought iron garden gatesecurity product
Specifications

4Rotors Electronic FHT
Reposition automatically
Bi-direction passing
The 4 rotors always being at the closing stature

Specification:
Framework material: Cold rolled iron( with surface baking varnish)
Produce Processing: Laser cutting fully controlled by computer
Framework Size: Length2800 width: 1813 height: 2400(mm)
Thickness of stainless steel: 2.0mm
Net Weight: 500Kg
Length of the pole: 610(mm) out of the framework.
The biggest bearing force of the pole: 80Kg.
Force of push: 3Kg
Transmission of the pole: Digital transmission
The direction of rotation: Single direction, bi-direction(optional) Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to passing.
Automatically reset function: It will automatically lock if the pedestrian hasnt pass through the channel in the pre-set time after the opening. The passing time is adjustable.
Light indicator: Direction indicating
Working environment: Indoor, outdoor(with a tent over).
Temperature: 10degree centigrade below~50degree centigrade Relative humidity: <90%.
Time for opening: 0.2second
Transit speed: 30 persons/min
Communication interface: Standard RS485 interface, distance less than 1200metres
Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms driving current: > 10mA

Functions:
Being compatible with serveral control devices IC, ID, magcard, bar code.
Unlocking is quick and reliable.
Counting Function of the controller, LED figure display function (optional)
Memory Function attached in the controller
With standard input, output interface

User include:
Station, port, view spot, exhibition, swimming club, enterprise and institution, special access and so on
