High-End Residential Siding Speed Gate Security Pedestrian

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Western Union

Product Description

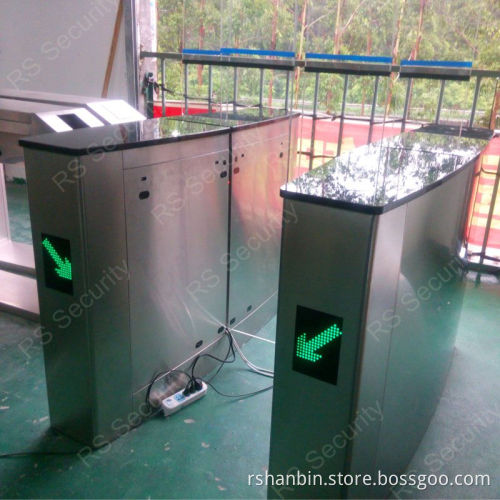

Access Control Security Intelligent Speed Gate Turnstile (RS Security )

Product Name: Speed Gate Turnstile
Model: RS 1006
high security product
anti-rushing turnstile
low noise barrier
run smoothly Gate

keywords: auto tripod turnstile ,access control system ,traffic barrier ,security gate ,metro turnstile, parking system, boom door,time attendance,speed gate turnstile,barrier gate

1. Size: 1400mmx 330mm X1000mm
2. Arms: 260 mm
3. Weight: 120 kg
4. Direction of entry and exit: One-way or two-way.
5. Power supply voltage: AC220 ± 10% V/50 ± 10% Hz
6. Drive Motor: DC brushed motors (24V)
7. Input interface: Dry contact signal or 12V level signal, or 12V pulse signal with whose pulse width >100ms, driven electricity >10mA
8. Communication interface: RS485, distance ≤ 1200meter
9. Passing speed: 40 people/ minute (normal open), 25-30/people (normal closed)
10. Closing and opening time: 1-2 seconds
11. When power on, 3 seconds needed for it to enter into passing status.
12. When there is breakdown, 10 seconds needed for its automatic return/reset.
13. Working environment: Indoor, outdoor (shelter)
14. Temperature: -10— — 50degree
15. Relative humility: ≤ 90%, no-condensation

Features:
1. Malfunction self-checking and alarm warning, ease of maintenance and installation
2. Operation method can be programmable
3. Anti-Pinch, stop when it detects movement in the passage.
4. Anti-rushing function: Auto lock if no valid signal is given
5. Doors can be adjusted into synchronization (only for double-locks)
6. Pass right will be cancelled if it is beyond the preset time
7. Normal close or normal open
8. Compatible with most access control systems
9. One direction or bi-direction control
10. Remote control by computer
11. Auto reset for time delay
12. Passable on power failure, meet the requirements of fire-fighting.
13. Sound and lights alarming: Including break-in and opposite direction intrusion, and so on.
14. Counting function (optional)
15. Speech output, human voice warning the right passing. (Optional)
High-End Residential Siding Speed Gate Security Pedestrian
