Three Phase Four Wire Power Meter

DESCRIPTION

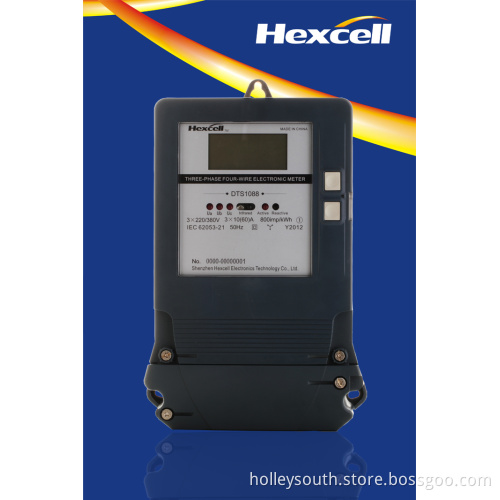

The DTS1088 three phase meter measures total active/reactive energy and forward and reverse active/reactive energy separately. It complies with applicable standards of IEC62052-11, IEC62053-21, 23, 61, IEC62054-21, IEC62056-21 and IEC62059-11, 21.

FEATURES

1. Measurement of total active/reactive energy
2. Separate measurement of forward and reverse active/reactive energy
3. Measurement of sub-phase total active energy
4. Automatic scrolling display and button-press display
5. Infrared and RS485 communication for parameters setting, meter calibration and reading via HHU And PC.
6. Programming button protection: No parameters setting allowed without Programming button's Turn-on.
7. Limited time of reset
8. Pulse output available for testing
9. Indication of current voltage status, active power status and reverse phase sequence status at phase A, B and C.
10. Indication of meter's programming and communication.
11. One minute average active/reactive power.
12. Instantaneous sub-phase voltage and current.
13. Instantaneous active/reactive power (total and sub-phase).
14. Optional PLC communication.

SPECIFICATIONS
