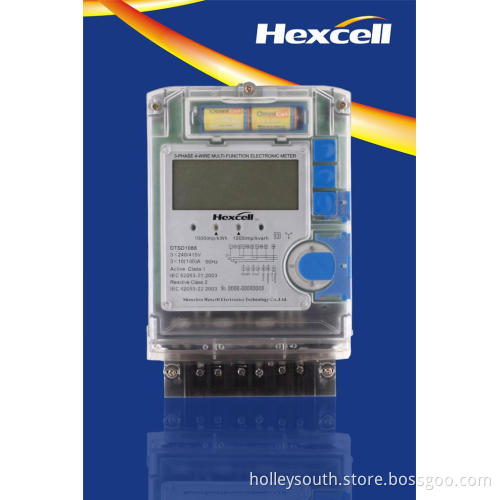

Three Phase Multi-Function Kwh Meter (DTSD1088)

The DTSD1088H4 is a smart three phase meter which can be achieves multi functions for energy metering and meter reading and setting. It complies with the standards of IEC62052-11, IEC62053-21, IEC62053-23, IEC62053-61, IEC62054-21, IEC62056-61, IEC62059-11 and IEC62059-21.

FEATURES

1. Active, reactive and apparent metering function.
2. 8-tariff TOU metering capabilities including 8-switching points per day, 12-day schedules, 8-week groups, and more than 600-holidays. Additionally, it provides a unique TOU function that each metering and recording channels can set to be an exclusive TOU program.
3. With Non-volatile memory can be permanently store and protect the interval data and which is able to sets 8 channels and measures over 70 days up to 20 kinds of power parameters per 15 minute intervals.
4. With instantaneous metering function, can be display the meter's basic power information precisely.
5. Events record with time mark such as voltage and current loss as well as demands reset.
6. Provide auto scroll or manual scroll display, display item can be set as per customer's demands.
7. Support several communicate ways for meter's on-site or remote reading and programming.
(Optical port, RS485)
8. Support real time, periods and 0: 00 clock power freezing function as well as other freezing methods.
(automatic, PC control)
9. Dump at any time point of a month and records the latest 12 times demands.
10. With real-time metering function. (A, B and C phase voltage, current, power and angle etc. )
11. Self-diagnostic feature. (Power modules, memory and clock test etc)
12. Backlight.

SPECIFICATIONS
