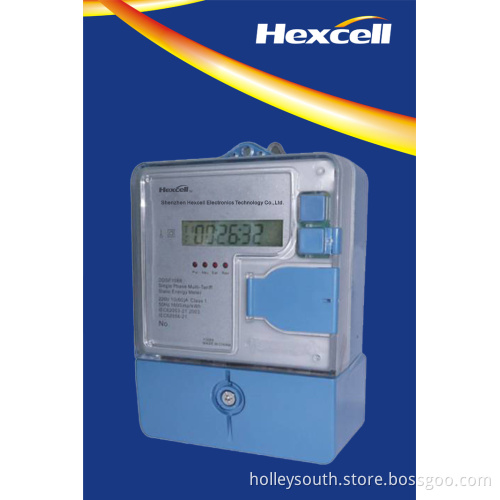

Single Phase Multi-Tariff Static Energy Meter

FEATURES

1.    Precisely indicate the current rates and show the power consumption integer as well as display maximum demands or other parameters.
2.    With data store function for TOU active energy metering.
3.    Put to use TOU metering method for monthly active energy maximum demand and occurrence time record.
4.    Support total maximum demand measurement with occurrence time.
5.    Programmable 8 rates and 8 periods.
6.    Button or auto rotate display function.
7.    Automatically divert data and arbitrarily set Billing Day within 1 to 28 days.
8.    With Calendar and internal soft clock design.
9.    Possess real-time event records function with time mark for maximum demand.
10.  Can record the open cover events with time mark.
11.  Programming and Billing communications can be achieved through PC.
12.  Use events record with time mark to Anti-tamper (40 times).
13.  Support button wake-up and rotate display when outage.
14.  Carried out magnetic detection from start to end.
15.  6-month power on and power off cumulative capability.
16.  Support current in neutral line detection.
17.  Supplied with switch power solution and wide range of voltage. (100V-288v)
18.  1 CT and 1 SHUNT.
19.  Optional anti-tamper function, including earth tamper, neutral tamper, reverse tamper, external
      magnetic tamper and open cover records.
SPECIFICATIONS
