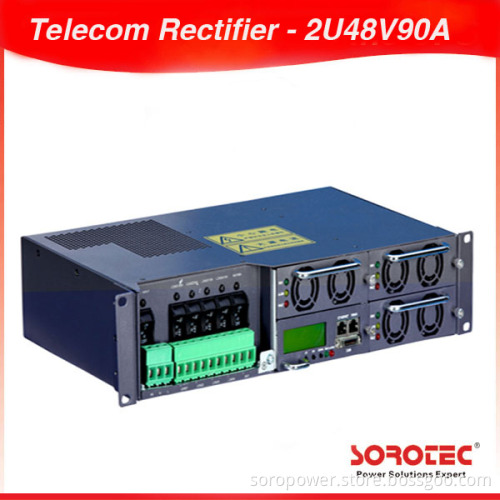

48V 90A Embedded Telecom Power System

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Mainland
Payment Type:	L/C, T/T

Product Description

Telecom power system
High power density
Small scale program controlled exchanges
SP2U-48V90A Embedded Power system
Application:
Small SPC exchange
AN(access network)
Transmission equipment
Moving communication
SP2U-48V90A Embedded Power system Main Technical Parameters
1. AC Input;
Rated input voltage: 220V
AC input Voltage range: 85-300V
AC input Frequency range; 45-66Hz
Power factor: ≥ 0.99
Efficiency: >92%
2. DC Input
Rated voltage; 48V
Voltage range: 42-60V
Rated Current; 20A/30A/40A/60A
Load shunt; 4 road load
Battery shunt; 1 road battery
Battery LVD; 100A× 1
Mode of connection; Former connection wire
Rectifier Module; SR4810, SR4815, SR4820, SR4830
Monitoring Module; STM-1
Safety characteristics;
Input ----output 3000VAC/10mA//1min
Input---- chassis 2500VAC/10mA//1min
Input---- chassis 500VAC/10mA//1min
Environment;
Operating temperature; -40-+70° C
Humidity; ≤ 95% non-condensing
Dimensions(W. H. D): 482.6*88*280(mm)
Weight(Kg); 10kg (include rectifier module)
