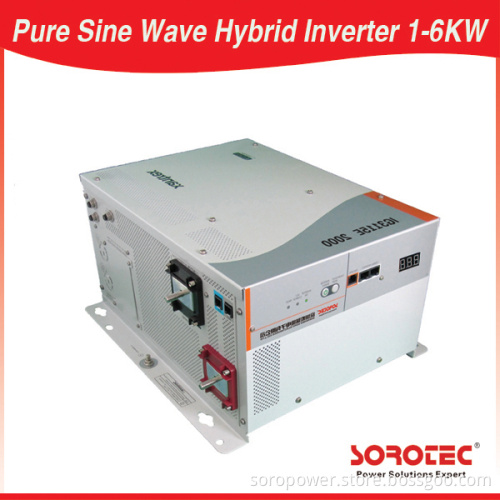

1kw to 6kw Pure Sine Wave Onduleur Power Inverter

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

1kw to 6kw Pure Sine Wave onduleur Power Inverter

Key Features:
1.Pure sine wave output

2.The charging current is big up to 70 Amp

3.Output power factor: S 0.9-1

4.Well accept generator's output

5.Full automatical and silent operation

6.Automatically transfer between battery and line modes

7.Microprocessor control guarantees high reliability

8.Remote control function

9.Four-steps intelligent charging control to recharging time

10.Bypass and bypass voltage regulation function

11.Could be setting frequency by LCD display for 50hz or 60hz

1kw to 6kw Pure Sine Wave Onduleur Power Inverter

Our Service

1. Samples

Samples are Available for Testing and Market Test.

2. Warranty of Soropower Products

Soropower provides warranty against defects in materials and workmanship for its Uninterruptible power supply,Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers ("Product").

3. Guides and After-service Consultancy

Soropower Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After service
consultancy just for you and to make your problems to solve easily.

Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)

Full protection:
Protection for low battery voltage, over load, output short circuit
And over- temperature Restrain surge interference, eliminate noise,
Protection for thunder striking, provide the reliable power to the
Home appliances.

Technical Specification of Pure Sine Wave Inverter IG3115 Series:

MODEL	IG3115C 1000-6000W
	1000W	2000W	3000W	4000W	5000W	6000W
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Line Disconnect	184Vac± 4%
High Line Disconnect	253Vac± 4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Over-Load Protection (SMPS load)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	> 95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	20ms (typical)
Output Voltage Waveform	Sine wave
Power Factor	0~1.0
Nominal Output Voltage (V)	230Vac
Output Voltage Regulation	± 10% rms
Nominal Efficiency	> 80%
Surge Ratings	3000	6000	9000	12000	15000	18000
Nominal DC Input Voltage	12/24	12/24	12/24	24/48	24/48	24/48
Nominal Charge Current	35/20A	65/35A	75/45A	65/35A	70/40A	75/50A
Charge Current Regulation	± 5Adc
Batteryinitial voltage	0 – 15.7 Vdc (can operate with 0V battery)
Communication:	RJ11 (Used for factory testing. No customer interface available)
Safety Certification	Compliance with UL458			CE(EN60950)
EMI Classification	FCC, CLASS A			EN50091-2, CLASS A
Operating Temperature Range	0° Cto 40° C
Storage temperature	-15º C ~ 60º C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Size: in mm	1000/2000/3000 Model: 442218179 4000/5000/6000 Model: 598218179
Net Weight:	18KG	20KG	22KG	35KG	45KG	45KG
Wooden case	28.5KG	28.5KG	30.5KG	48KG	58KG	58KG
