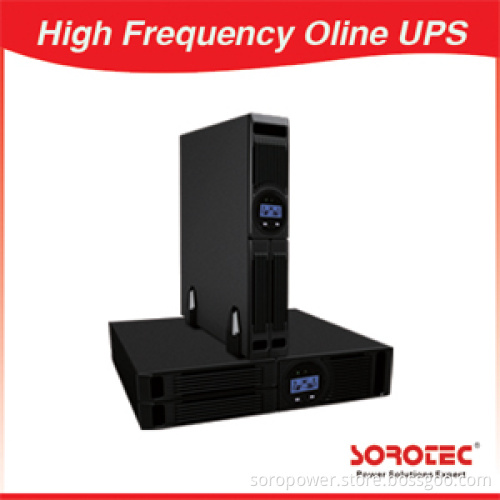

Rack-tower covertible online UPS HP9115C Series 1KVA to 10KVA

Specifications:

1)Power Factor 1-3K 0.8/6-10k 0.9

2)3)Large LCD for Detailed Real Time UPS Status

3)Self-Protection Design

4)Online UPS

1.PF=0.8 single phase Intelligent online UPS

2.Large blue LCD display interface in English ,user-friendly

3.Strong environment adaptability and wide input range

4.High-reliability, energy-saving and eco-friendly

5.Inverter isolation and pure sine wave communication networking system traffic monitor lighting

6.Online UPS protection function

7.Line interactive UPS

8.With pure sine wave output and battery room inside

9.Intelligent no-load shut-off (optional)

10.Automatic adaptive frequency

Features:
lHigh transfer efficiency, highest can reach 90%. No load cost is no more than 5W.

lOutput pure sine wave.

lProtections: against short-circuit, overload, battery reverse polarity, low-voltage, and over-voltage protection, etc.

lStrong ability of resist concussion, can load all kinds of electric apparatus and industry equipments, such as air condition, refrigerator, television, fan, washer, etc.

with temperature control function, which can save energy consumption.
with overload automatic recovery function The service life can reach a decade

Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom

Technical Specifications of Online UPS HP9115C 1-10KVA:

Model	HP9115C 1-10KVA
	1KRT	1KRT-XL	2KRT	2KRT-XL	3KRT	3KRT-XL	6KRT	6KRT-XL	10KRT	10KRT-XL
Capacity	1KVA/800 W		2KVA/1600 W		3KVA/2400 W		6KVA/4800 W		10KVA/8000 W
Norminal voltage	220/230/240VAC Single phase 2 wire+G
Norminal frequency	50/60 Hz
Input
Voltage Range	115~300VAC						120~275VAC
Frequency Range	50HZ:(46~54HZ);60HZ;(56HZ~64HZ)
Power Factor	>0.98						0.99
Output
Voltage Precision	220/230/240X (1±2%)VAC
Frequency Precision	50/60Hz ±0.05Hz
Power factor	0.8						0.8/0.9(Optional)
Harmonic Distortion	Linear load<3% Non-linear<6%
Overload Capability	load>110%for 47s; load>150%for 25s; load>200%for 300ms;						105%<load≤125% for60s; 125%<load≤150% for30s; load>150%for 0.5s;
Current Crest Ratio	3:1
Transfer time	0 ms(AC mode→DC mode);(AC mode→Bypass<4ms)
Battery
DC Voltage	36VDC		72VDC		96VDC		192 or 240DVC
Recharge Time	5 hours to 90% (it means standard model which battery inside UPS)
Charging current	1A	4A/8A(Optional)	1A	4A/8A(Optional)	1A	4A/8A(Optional)	2A	4A	2A	4A
Panel Display
LCD	UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records, adjust Voltage, ECO mode
Communication
Communication port	Smart RS232, SNMP (Optional) , USB(Optional)
Working Environment
Temperature	0~40°C
Relative Humidity	0~95% non-condensing
Storage Temperature	-25°C~55°C
Elevation	1500m
Noise Level	<45dB			<50dB			<50dB
