5.8g Wireless Camera Monitor-90deg VOA, 100m, 5inch Screen, Motion Detect and Loop Recording
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description
Product Description

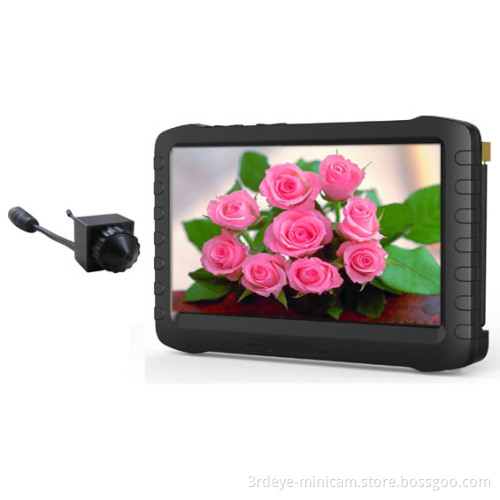

This kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency. It transmits 100 meters range. The size of camera is smaller than finger, which is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures. Motion detect & loop recording are available for more convenience use. Just connect the camera to AV power supply, it starts to continuous working. Just plug & play! It is a good helper for safe & security.
Main Features
1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2.16 channels available, users can freely choose one when they use it;
3.0.008LUX super low illumination, which can see clearly under dim light;
5.90° Broad view angle;
6. Low power consumption assures the long time working life;
7.25mW transmitting power, which leads 100 meters wireless transmission range
8. High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9. Motion Detection Available: Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed.
How to use:
Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
Then real time audio & video begin to transmit from camera to DVR for view or recording or taking pictures.
Main Features
1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2.16 channels available, users can freely choose one when they use it;
3.0.008LUX super low illumination, which can see clearly under dim light;
5.90° Broad view angle;
6. Low power consumption assures the long time working life;
7.25mW transmitting power, which leads 100 meters wireless transmission range
8. High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9. Motion Detection Available: Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed.
How to use:
Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
Then real time audio & video begin to transmit from camera to DVR for view or recording or taking pictures.
Working frequency |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
|||
RF OUTPUT POWER | 25mW | |||
TRANSMISSIONRANGE | 100 meters | |||
AUDIO SUBCARRIRER LEVEL | -28dBc | |||
AUDIO SUBCARRIRER FREQ.NCY | 6.5MHz | |||
SENSOR DIMENSION | NTSC:720(H)×480(V) | PAL:720(H)×576(V) | ||
SENSITIVITY | 0.008Lux/F1.2 | |||
LENS & VIEW ANGLE | 0.5mmF1.2 / 90 ° (TE92A) 3.6mmF2.0 / 90 ° (TE92B) | |||
SIZE(L x W x H) |
22.5mmx 15.5mm x 15.5mm MC900D:11.5mmx 11.5mmM x 14-17mm |
|||
WEIGHT(g) |
10g MC900D:2 |
|||
WORK CURRENT | 230mA | |||
POWER REQUIREMENT | DC 4V | |||
OPERATING TEMPERATURE | - 20°C ~ + 50°C,Relative humidity85 |
