5.8g Tx /Rx Wireless System (TE860H)

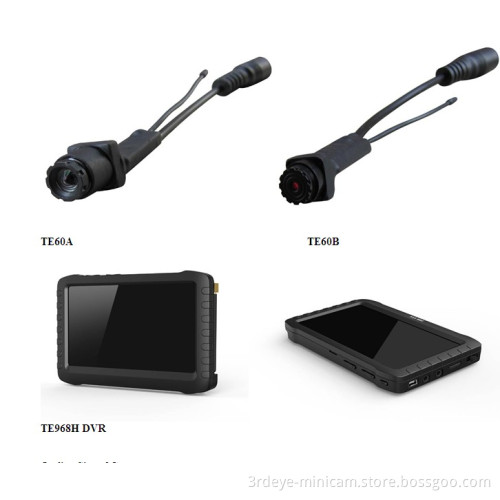

This kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G
Frequency. It transmits 100 meters range. The size of camera is smaller than finger, which is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures. Motion detect & loop recording are available for more convenience use. Just connect the camera to AV power supply, it starts to continuous working. Just plug & play! It is a good helper for safe & security.

Main Features

1. No-interference 5.8G frequency, no need to worry the interference from general-used 2.4G frequency;
2. Camera has up to 24 channels for choice;
3. Tiny size camera (smaller than finger), and tiny weight (only 8g);
4. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90° And 50° View angle for your choice;
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range;
8. High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9. Motion Detection Available: Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed.

Installation Notes for Camera:
1. This camera has one working channel. Please select the model with your requested frequency;
2. Pay attention to horizontal direction of lens, and then fix camera.
