2.4G Wireless Mini Camera and Portable DVR Receiver Monitor Recorder (motion detect, 32GB SD card, 9.5hours loop seamless recording)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

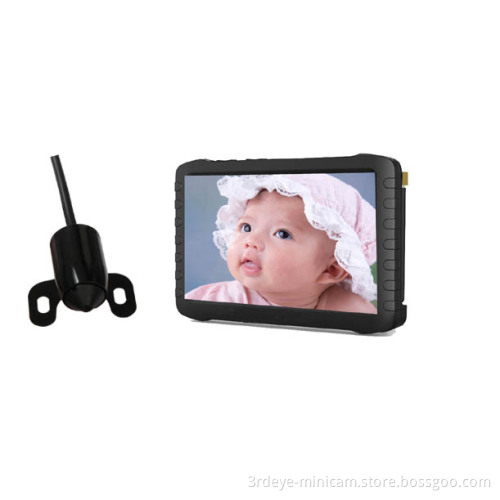

2.4GHz 0.008lux 520TVL Wireless Bullet Camera with 5-inch HD DVR, Wireless Mini CCTV Camera with DVR Receiver

0.008lux 520tvl Wireless Bullet Camera with 5-Inch HD DVR Receiver

Main Features:
1. Small size bullet camera with removable and foldable mounting holes: Easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission(100mW power; 150 meters range in line of sight), not limited by cable. Very convenient to put it anywhere. Just plug & play.
3. High resolution(786X576pix; 520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch; Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 or 120 degree for your choice) of camera;
6. Convenient power supply and continuous working of camera: Can be powered by AC power supply and computer.
7. 5-inch HD screen DVR for real time video view: Video Format: MPEG-4, AVI (720 or 640 @ 30fps);
8. DVR memory: Support SD card 1GB to 32GB; Recording time up to 9.5 hours;
9. DVR supports motion detect recording and loop recording;
10. DVR can take pictures.
11. DVR supports wireless signal from total 24 channels among 2.4GHz & 5.8GHz (within & beyond) frequency
Usage:
Just plug USB port of camera to AC adapter or computer, camera starts to work. And at the same time, you can use this 5-inch HD DVR receiver to receive and record real time video and audio, or take pictures.

Frequency	2.4G	2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4)	Working channel:1 of 4

Audio Subcarrier Frequency		6.0Mhz
Antenna		2.4GHz built-in antenna
RF Output Power		100mW
Transmission Range		150 meters
Total Pixels		NTSC:656(H)×492(V)	PAL:786(H)×576(V)
Horizontal Resolution		520TV Lines
Minimum Illumination		0.008Lux/F1.2
Lens & View angle		90 °/120°
S/N Ratio		more than 48dB
Size (L)		1.8m {lens size (L x D):27mm X 15mm }
Net Weight(g)		50g
Current		160mA
Voltage		DC 5V
Operation Temperature		- 20°C ~ + 50°C ,Relative Humidity:85 percent

2) DVR Receiver:

Items		Value
Wireless Receiving	2.4GHz -8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
	Within 5.8G_8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
	Beyond 5.8G_8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
AV IN	Output voltage	3.6-4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/ square meter
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM)	300cd/square meter
Video	Resolution	720576 / 640480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
Standby time	Wired record	≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g
