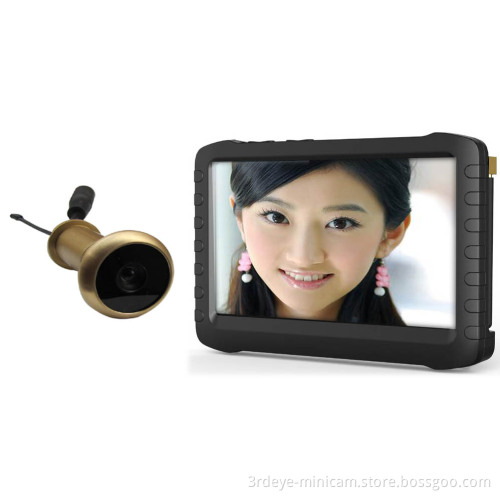

5.8G Wireless Door Peephole Camera with DVR(No-interference frequency, 100m range; 90 degree VOA; 0.008lux; 5-inch screen; 800X600pix; Motion detect recording)

Model: TE850H

Why Install This Product?

# Do You Want to monitor if any unauthorised people is outside your House?

# Do You Want To Know Who Come To Your House?

Get The Door Peephole Camera Kit Now! !

*No visible wires from the door's exterior, and exact same looking as original one, so the camera won't look suspicious;

* Pure brass materia, it's noble and durable;

*5.8G no-interference frequency, 100m wireless range;

* Records video in high and low light(0.008lux) situations;

*Wide-angle(90° ) lens makes it easy to capture footage of a corridor;

* 5-inch large screen DVR playback Video instantly without connecting to computer;

* Motion Detection Available: Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);

* No need any cable installation, just plug and play;

* Support SD Card(up to 32G) recording for any evidence needed.

5.8g Wireless Door Peephole Camera with DVR

Working frequency	G1-within 5.8G	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz			Working Channel: 1 of 24
	G2-Beyond 5.8G	CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
	G3-Within 5.8G	CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna		External antenna
RF OUTPUT POWER		25mW
TRANSMISSION RANGE		100 meters
SENSOR DIMENSION		NTSC : 720 ( H) ×480 ( V)		PAL : 720 ( H ) ×576 ( V )
HORIZONTAL RESOLUTION		480TV Lines
SENSITIVITY		0.008Lux/F1.2
LENS & VIEW ANGLE		0.5mm F1.2 / 90 °
PEEPHOLE SIZE(L x D)		38-60mm X 14mm
WEIGHT ( g)		20g
WORK CURRENT		230mA
POWER REQUIREMENT			DC 4V
OPERATING TEMPERATURE			- 20°C ~ + 50°C , Relative humidity 85 percent

5 inch HD Mini DVR--TE968H

Items		Value
Wireless Receiving	2.4GHz -8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
	Within 5.8G_8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
	Beyond 5.8G_8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
AV IN	Output voltage	3.6 - 4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM)	300cd/
Video	Resolution	720576 / 640480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
Standby time	Wired record	≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g
