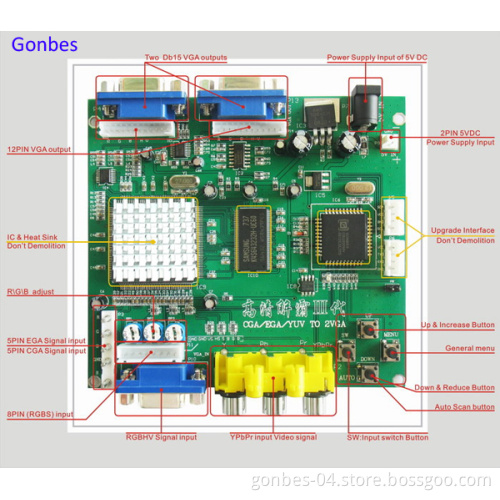

CGA to VGA Converter From Gonbes (GBS-8220)

Model No.: GBS-8220

The high definition converter GBS-8220 is a professional game& playstation display converter. Supported all games(Amusement\Play station\xBox\Wii^^)convert to CRT monitor \LCD monitor \PDP monitor^^ Auto scan CGA/EGA/YUV signal, VGA outputs, output high resolution signal.

Supports CGA/EGA/YUV signal input.
Supports VGA output 640*480, 800*600, 1024*768, 1360*768
CGA/EGA signal auto scan(15K, 24K, 31K)
YUV signal auto scan(480I, 576I, 720I, 1080I, 480p, 576p, 720p, 1080p)
Chinese and English OSD.
Supports position control & zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all VGA monitor (CRT\LCD\PDP\PROJECT^^)

Operation Menu:
- "MENU" open OSD menu, and enter.

- "UP" up and increase.

- "DOWN/AUTO" down and reduce.

Press this key auto scan CGA/EGA signal

Press this key over 5 second and release reset system

** (this operation is invalid when you open OSD menu)

- "SW" switch input signal YPbPr/RGBS/RGBHV.

** (this operation is invalid when you open OSD menu)

- "Clamp sp" & "Clamp" please don't adjust this button, excepting the monitor have black item, or picture discoloration.

More functions control please look to OSD to operation.

Applications:
Transfer high resolution low resolution, scan board, display, high resolution screen, LCD games, arcade LCD, HD game consoles, high resolution scanning, connectivity fighting, KOF board, LCD Landlords, turn Super 888, 15 K 31K, CGA / EGA / YUV switch to VGA, CGA / EGA, CGA, EGA, 15K, 31K, RGBS switch to VGA, 24K switch to 31K, CGA switch to VGA, EGA switch to VGA, 32-inch LCD fighting machine, LCD fighting ring, the ultimate LCD fighting, game-specific liquid crystal display, 32 'LCD iron fist Wong, LCD around the world, dream of fighting, 32 "high definition LCD screen games, Tekken LCD machine
