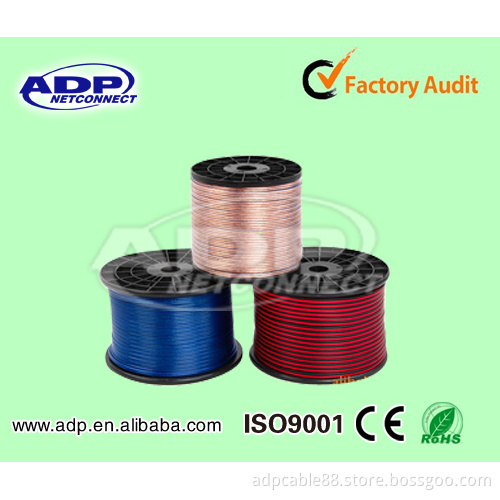

Made in China Hangzhou High Quality Bulk Speaker Cable Red Black Speaker Cable Nordost Speaker Cable

1. nordost speaker cable
2. Copper wire + tinned copper wire
3. 300/300V
4. Transparent PVC

5. IEC/GB

High quality flexible 2C transparent nordost speaker cable by IEC Standard has the advantage of high mechanical trength,good ambient stress resistance,good electrical propertie and anti-chemical corrosion.  These cables are suitable for use in audio systems for low and high power speaker connections, security applications.



1. Conductor: both fine annealed copper wire or fine annealed copper wire + fine tinned copper wire

2. Conductor size:  0.5mm²~2.5mm², 3.0mm²

3. Insulation:  PVC or transparent PVC

4.  Voltage rating: 300/300 V

5.  Operating temperature: 70°C

6.  Standard applied:  IEC60227,  GB11016.3

7.  Remark: The cable can be of flame retardance and other property like Rohs compliant


1. Introduction
Twin Flat Speaker Cable is for the connection of loudspeaker, home theater or audio system. And for connecting power amplifier and broadcasting systems, transmitting the audio signals amplified by the amplifier.
2. Specification:
CONDUCTOR 0.35sqmm to 4.0sqmm, bare copper, tinned copper or CCA material
INSULATION PE or PVC Insulation
COLOR transparent, red/black, white and any color
Conductor Dia. Overall Diameter Conductor Square Meter
10 AWG 5.5+5.5mm 4.0mm2
12 AWG 4.5+4.5mm 2.5mm2
14 AWG 4.0+4.0mm 2.0mm2
16 AWG 3.5+3.5mm 1.5mm2
18 AWG 3.0+3.0mm 1.0mm2
20 AWG 2.5+2.5mm 0.75mm2
22 AWG 2.0+2.0mm 0.50mm2
24 AWG 1.8+1.8mm 0.35mm2
Nominal Voltage: 220V
Temperature Range: -10° C to + 80° C

1) Packing Lengths: 10m/roll,20m/roll,30m/roll,50m/roll,100m/roll ,200m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request; 2) Inner packing: paper spool,box Wooden reel, plastic reel available. 3) Outer packing: Cardboard box, pallet customers'request available
