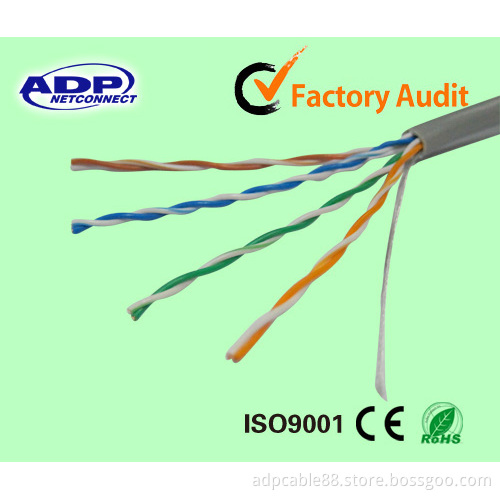

UTP 4 Pairs Communication Cat5e Cable

UTP 4 Pairs Communication Cat5e Cable
Product Description:
Reference standard: ISO9001: 2008, CE
Copper/CCA/ccag conductor
RoHS complied PVC, PE
Conductor Dimension: 1/XX+-0.01mm)
No. Of Pairs: 4 with ripcord
Type of Jacket: New PVC/PE
Color:
Blue, black, orange, grey etc.
Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Complies to TIA/EIA-568B&ISO/IEC 11801 and 100MHz Category 5e, Gigabit Ethernet, 100Base-Tx, 100Base VG ANYLAN, 155ATM, 622ATM, Token ring, TP-PMD Audio, Multimedia and Telephone network, etc.
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
Package:
1) Packing Lengths: 1000ft/roll, Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4)Carton size: Copper conductor 41*35.8*36.5cm, 2box per carton
