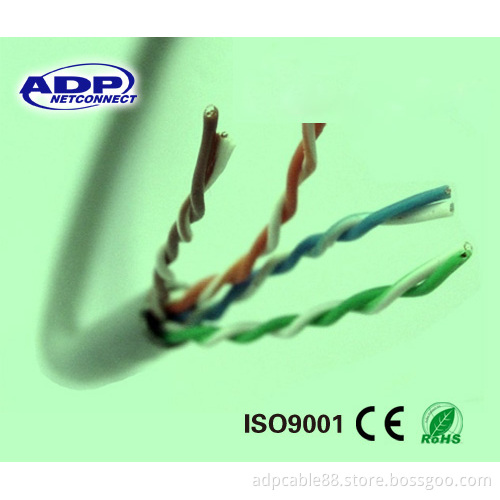

China UTP Cat5e Network Cable
Conductor:
Material: BC/CCS/CCA/TC/CCAG
Number of pairs: 4 pairs
AWG: 24awg
Conductor diameter: 0.515± 0.003mm
Insulation:
Material: HDPE
Diameter: 1.02± 0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
First screen: Aluminum mylar shield (superposition rate: 25%)
Overall screen: 80/0.1mm TC braid shield (coverage: 60%)
Braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm, braid material, AL-MG, CCA, CCS, copper or tinned copper for braid), FR/PVC or LSOH jacket
Jacket rip cord: Optional
Sheath:
Material: PVC or LOZH
Nominal diameter: 6.0 ± 0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.50mm
Operating temperature: -20 to 75° C
Minimum bend radius (install): (8*OD)
Flame test: CMX, CM, and IEC60332-1
Reference standard: TIA/EIA568B and IEC/ISO11801
