2-288core GYTA Aerial and Duct Fiber Optical Cable

2-288core GYTA Aerial and Duct Fiber Optical Cable
New arrival Hot selling outdoor fiber cable GYTA
Brand Name: ADP

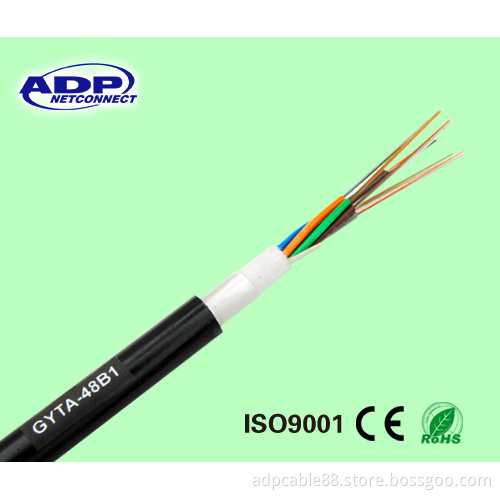

GYTA Aerial and duct fiber optical cable
1. GYTA fiber optical cable2. Metal-strength member3. Aluminum tape armored PE sheath4. The way: Aerial and duct
GYTA fiber optical cable
. Structure description
GYTA fiber optical cable, metal Strength member, loose tube stranded type, gel filled, Aluminum tape armored Polyethylene(PE) sheath.
Packaging & Delivery
Packaging Detail: Packed on drums suitable for long distance shipment, the drum is fumigated or non fumigated.
Delivery Detail: According to the ordered quantity, On customer's request, 1000m~5000m rolller
Detailed Product Description
CSM: Steel wire or non-steel
Filler rod, flooding compound
Al Tape armoured, PE jacket
OEM order is welcome
Description
The fibers, 250µ M, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count locates in the center of
Cores as a metallic strength member
Tubes(and fillers)are stranded around the strength member into a compact and circular cable core.
An \Aluminum Polyethylene Laminate(APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Feature
Good mechanical and temperature performance
High strengh loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially desined compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight
Steel wire used as the central strength member
Loose tube filling compound
100%cable core filling
APL moisture barrier
Application
Used for long haul communication and local network
Installation method: Aerial and duct
Operating temperature: -40° C~+70° C
Appicable fiedsUsed for long-distance communication and LAN
Fiver range Cable outer
Diameter Cabe weight Min. Bending radius Alowable tension Max. Crush oading force
Static Dynamic Short term Long term Short term Long term
2-30 9.8 115 10times
Cabe
Diameter 20times
Cabe
Diameter 1500 600 1000 300
32-36 10.6 140
38-60 11.0 140
62-72 11.6 165
74-96 13.2 205
98-120 14.7 245
122-144 16.1 285
146-216 16.6 300
218-240 19.8 395
242-288 22.0 470
Remarks: We can design oval cross section and non-metallic structure on requirement, e. G.: GYXTEW, GYFXTW, GYFXTEW, etc...
