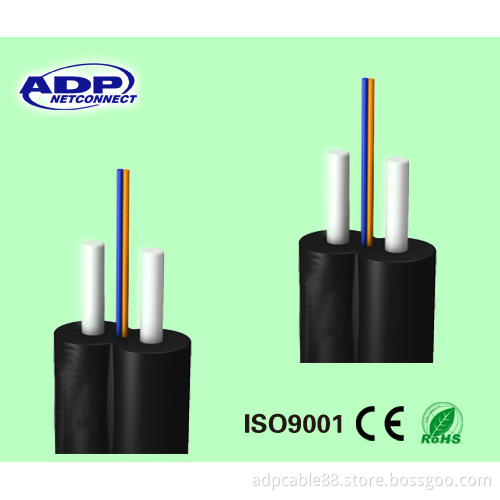

FTTH Terminal Cable (indoor fiber optical cable)

FTTH Terminal cable (indoor fiber optical cable)
1fiber, , 2 fiber, 4 fiber for big data transmission;
FRP/Steel strength member
Flame retardant LSZH cable jacket
UV protection
Applications
1, Used as access building cable;
2, Used in indoor cabling, especially used for FTTH.
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Cable Parameters
Fiber Count
Cable Dimension
Mm
Cable Weight
Kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
Mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
4
4.0× 2.0
8.2
60 / 100
100 / 200
500 / 1000
1000 / 2200
20H
10 H
-20-+60
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable core use the colored coating fiber of 250μ M;
3. H is height of the flat cable;
4. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used;
5. The minimum bend radius (static) is 5H when G657 fiber is used.
Options
1, Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
2, Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
3, Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
4, Cable Dimension: The nominal cable dimension, or other contracted dimension;
Application:
1. Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
2. Access network, fiber to the home
3. End users use directly cabling.
4. Support the internet, CATV and telephone, Support more network increase service in futur
