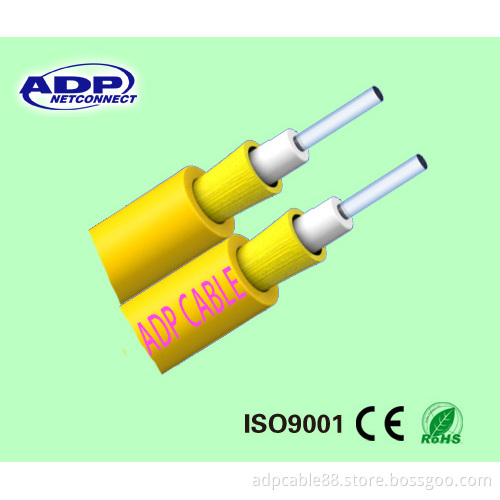

Fiber Cable Optical, Duplex, Distibution Cable, Indoor Use, G. 652D
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Indoor Optic Fibre Cable
8 Core/24core
1. RoHS compliant2. Serious precessubg art3. Building Cabling4. Jumper patchcord cable
Indoor Multi Core Fiber Optic Cable for telecommunication:
Discription:
Indoor multi corer distribution fiber optic cable use several diameter 900μ M flame-retardant tight buffer fiber as optical communitcation medium, the tight buffer fiber wrapped with a layer of aramid yarn as strenght member units, and the cable is compieted with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant ) jacket.
Features: 1. Tight buffer fiber ease of stripping. 2. The jacket anti-corrosion, anti-water, anti-alltraviolet ratardation, flame retardant and harmless to environment etc; 3. Excellent flame retardart jacke and anti-torsion 4. Soft, flexible, easy to splice, and with big capacity data transmission; 5. All dielectric structure protect it from electromagnetic influence 6. Scientific design with serious processing art.
Application: 1. Multi optical fiber jumper, patch cord, pigtail cable; 2. Indoor any purpose cable distribution; 3. Backbone building distribution cabling.
4. Installation: Wall, interlayer, pipe, trough, duct
Multi Core Fiber Optic Cable characteristics:
Fiber count Cable Diameter (mm) Cable Weight (kg/km) Tensile (N)
Long/ Short term Crush (N/100mm)
Long/ Short term Min. Bend Radius (mm)
Dynamic/ Static
4 5.0 19.0 130/440 200/1000 20D/10D
6 5.2 23.0 130/440 200/1000
8 5.5 26.0 130/440 200/1000
12 6.5 36.5 200/660 200/1000
16 7.5 44.5 200/660 200/1000
24 8.2 54.5 200/660 200/1000
Note: 1. The min. Bend radius (static) is 5D when G657 fiber is used.
2. Range of temperature: -40~+70° C
3. D is outer diameter of the round cable
4. Tight-buffered fiber is 0.9mm
Order Optional Information:
L Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.
L Jacket color: Blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
L Fiber type: B1-G. 652, B1.3-G. 652. D, B4-G655, A1-50/125μ M, A1b-62.5/125μ M, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G. 657, E1.1- EasyBad Plus G. 657, etc.
L Cable Dimension: The nominal cable dimension, or other constomerized dimension;
L Fiber Count: Total number of fibers in the cable
L MOQ: 1km~2km, or other customerized
8 Core/24core
1. RoHS compliant2. Serious precessubg art3. Building Cabling4. Jumper patchcord cable
Indoor Multi Core Fiber Optic Cable for telecommunication:
Discription:
Indoor multi corer distribution fiber optic cable use several diameter 900μ M flame-retardant tight buffer fiber as optical communitcation medium, the tight buffer fiber wrapped with a layer of aramid yarn as strenght member units, and the cable is compieted with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant ) jacket.
Features: 1. Tight buffer fiber ease of stripping. 2. The jacket anti-corrosion, anti-water, anti-alltraviolet ratardation, flame retardant and harmless to environment etc; 3. Excellent flame retardart jacke and anti-torsion 4. Soft, flexible, easy to splice, and with big capacity data transmission; 5. All dielectric structure protect it from electromagnetic influence 6. Scientific design with serious processing art.
Application: 1. Multi optical fiber jumper, patch cord, pigtail cable; 2. Indoor any purpose cable distribution; 3. Backbone building distribution cabling.
4. Installation: Wall, interlayer, pipe, trough, duct
Multi Core Fiber Optic Cable characteristics:
Fiber count Cable Diameter (mm) Cable Weight (kg/km) Tensile (N)
Long/ Short term Crush (N/100mm)
Long/ Short term Min. Bend Radius (mm)
Dynamic/ Static
4 5.0 19.0 130/440 200/1000 20D/10D
6 5.2 23.0 130/440 200/1000
8 5.5 26.0 130/440 200/1000
12 6.5 36.5 200/660 200/1000
16 7.5 44.5 200/660 200/1000
24 8.2 54.5 200/660 200/1000
Note: 1. The min. Bend radius (static) is 5D when G657 fiber is used.
2. Range of temperature: -40~+70° C
3. D is outer diameter of the round cable
4. Tight-buffered fiber is 0.9mm
Order Optional Information:
L Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.
L Jacket color: Blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
L Fiber type: B1-G. 652, B1.3-G. 652. D, B4-G655, A1-50/125μ M, A1b-62.5/125μ M, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G. 657, E1.1- EasyBad Plus G. 657, etc.
L Cable Dimension: The nominal cable dimension, or other constomerized dimension;
L Fiber Count: Total number of fibers in the cable
L MOQ: 1km~2km, or other customerized
