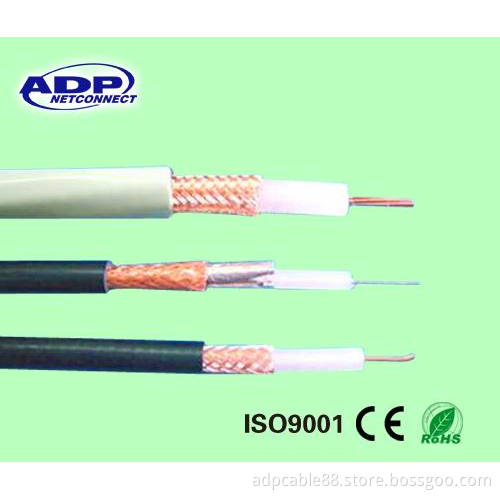

Coaxial Cable (C-07)

RG6/U CABLE
1.02mm CCS BC+4.57mm Foam PE+16*4*0.16mm Al-Mg braiding(60%)+6.9mm PVC
Cable Construction Details:
Inner conductor 1.02mm
Material Copper Clad Steel
Dielectric 4.57mm
Thickness 1.78mm
Material Foam Polyethylene
Shield
Material Aluminum/Polyester/Aluminum with bonded
Coverage 100%
Braiding
Strand diameter 0.12mm
Carriers 16
Ends 4
Material Aluminum wire
Coverage 60%
O. D 4.75mm
Jacket
Thickness 0.78mm
Material PVC
Color White
O. D 6.91mm
Mechanical Characteristics:
Minimum bend radius 100mm
Cable Temp. Rating(° C) 70
Electrical Characteristics:
Impedance 75± 3 Ohms @ 210MHz
Velocity 83%
Return loss 5-1000MHz ≥ 26dB, 1001-2250MHz ≥ 20dB
2250-3000MHz ≥ 15dB
Typical Attenuation: (20° C)
Frequency(MHz) Max Atten (dB/100m)
55 5.25
250 10.83
500 15.29
870 20.04
1000 21.49
1450 26.23
2000 31.33
