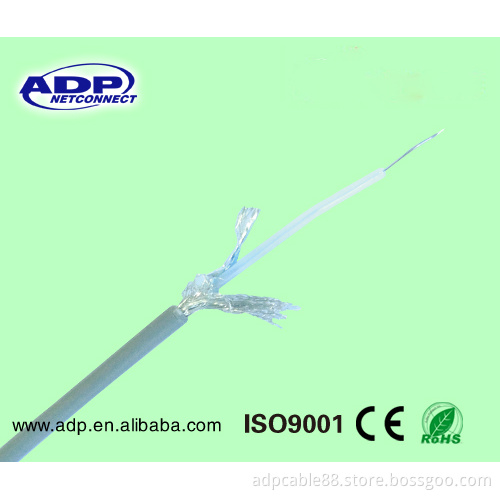

Rg174 Mini Coaxial Cable in Telecommunication

RG174 Mini Coaxial cable in telecommunication
Specification:
0.4mm TC /1.45± 0.20 mm HDPE / 16*6*0.12mm95% TC Braiding / 3.15± 0.10 mm Gray PVC (OR PE)
Options for material:
1) Center conductor: Tinned Copper or Bare Copper, and Copper Clad Steel available;
2) Al-foil: Unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding wire: Tinned Copper/CCS;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC sheath: Flame retardant, RoHS, available.
Characteristics:
Attenuation: [@68 F. (20 C° ) ] dB/100meters
50MHz: 16.70dB
220MHz: 35.80dB
450MHz: 51.90dB
900MHz: 74.90dB
Impedance: 75+/-3 Ohms 50 Ohms
Velocity of Propagation: 85%
Package:
1) Packing Lengths:
200m/roll, 305m/roll, 1000m/drum, Other lengths available according to client's request;
2)Inner packing: Wooden reel, plastic reel available.
3)Other packing available according to client's request.
Application:
USD for antenna and other telecommunication etc.
