F6tsvcu Coaxial Cable RG6

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

F6 series of coaxial cable is applied to CATV networks as drop cable, which meet the transmission requirement of broadband, high speed and low loss. CCS(20%) or Cu center conductor, 75ohm impedance, 305m packaging.
F6TSVCu

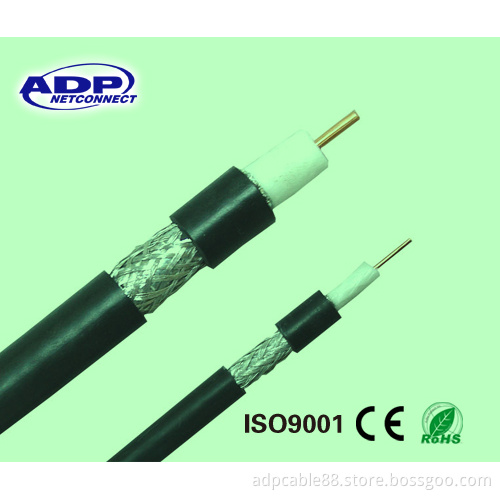

Coaxial Cable, RG6, 1.02± 0.01mmCu+FPE4.57± 0.05mm+bonded AL foil+64/0.16AL wire+AL foil+PVC7.06 ± 0.1mm (70 C), 305m wood drum.
Features
Minimum Bend Radius: 10.2mm (0.253")
Maximum Pulling Tension: 10.2mm (0.253")
Capacitance: 15.3± 0.1 pF/ft, (50± 3 nF/km)
Impedance: 75± 3 ohms
Velocity of Propagation: 88% (Nominal)
Maximum DC Loop Resistance: 1.61 ohms/1000 ft (2.52 ohms/km)
Application
HFC network
